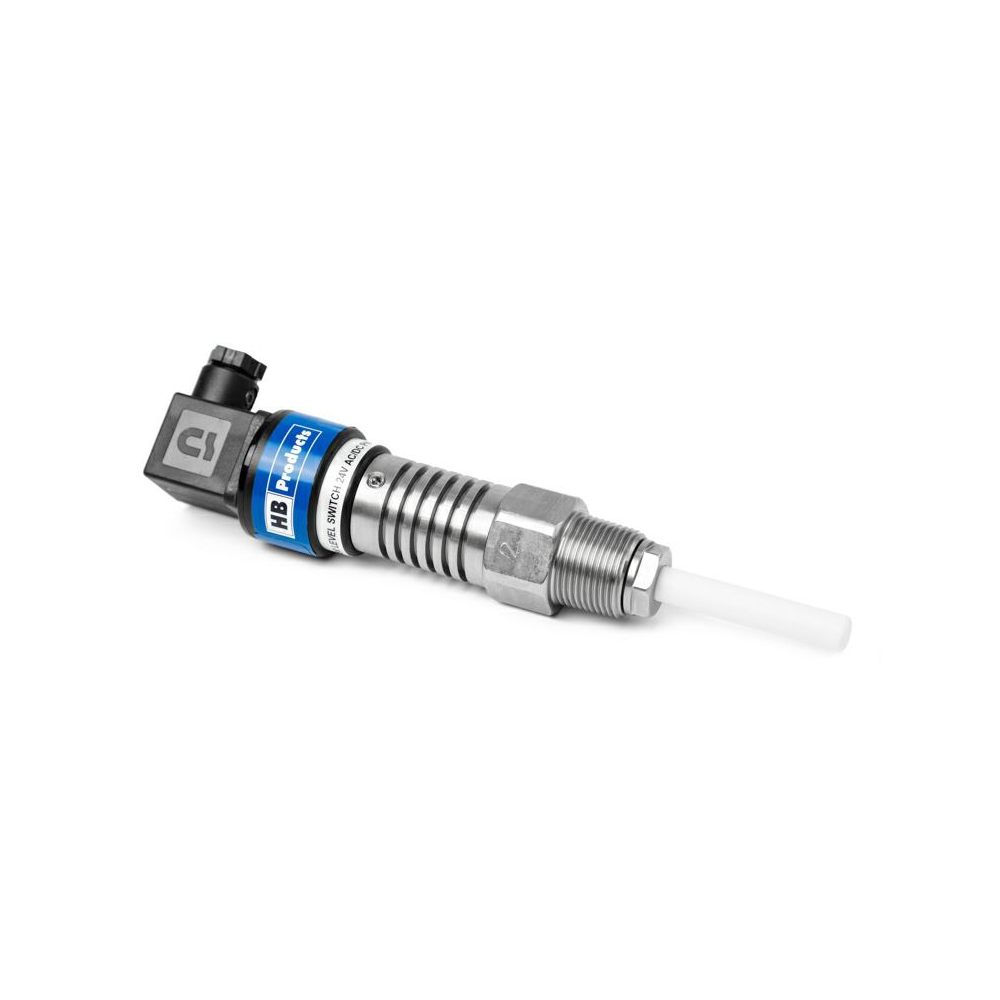

HBSR-PNP/NO-2 HB Products Liquid Level Switch for NH3/Brine - IP54
Liquid Level Switch for NH3/Brine - IP54 Output: PNP, Contact function: NO 3/4 NPT - with set screw connection
List Price
$434.32
List Price
$434.32
Web Price
$269.43
Details
HBSR is a level switch for the detection of NH3 and Brine refrigerants.Typically it is installed in/on the refrigerant vessels, pump separators, economisers or heat exchanger.The sensor is specially built to resist high pressure and low temperatures.Product Features:Proven sensor technology for simple transsistor output PNP/NPN and NO/NC contact function. The NO/NC term refers to the state of the contact in "dry" condition, when not influenced by the liquid.Designed for the industrial refrigeration industry - max pressure 100 bar.Clear indication with LED when refrigerant is detected.Split design which makes it easy to install and make diagnostic on.
More Information
| Weight | 5.050000 |
|---|---|
| Condition | New |
| Brand | HB Products |
| Thread Type | 3/4" NPT |
| Transistor Type | PNP |
| Contacts | NO |
| Mechanical Connection | with Set Screw Connection |
| Ambient Temperature | -22°/122°F (-30°/50° C) |
| Current Consumption | < 10 mA |
| VAC | 24 V AC/DC + 10% |
| Plug Connection | ISO4400/DIN 43650 - 4 pins |
| Maximum Pressure | 100 bar |
| Protection Degree | IP54 |
| Vibrations | IEC 68-2-6 (4g) |
| Material - Liquid Parts | AISI 304 / PTFE |
| Material - Electrical Parts | Nylon 6 (PA) |
| House Design | Front Housing |
| Alarm Contact Function | -60°C to 80°C |
| Version | Standard |
| Length | 4" |
| Width | 9.4" |
| Height | 11.8 |
