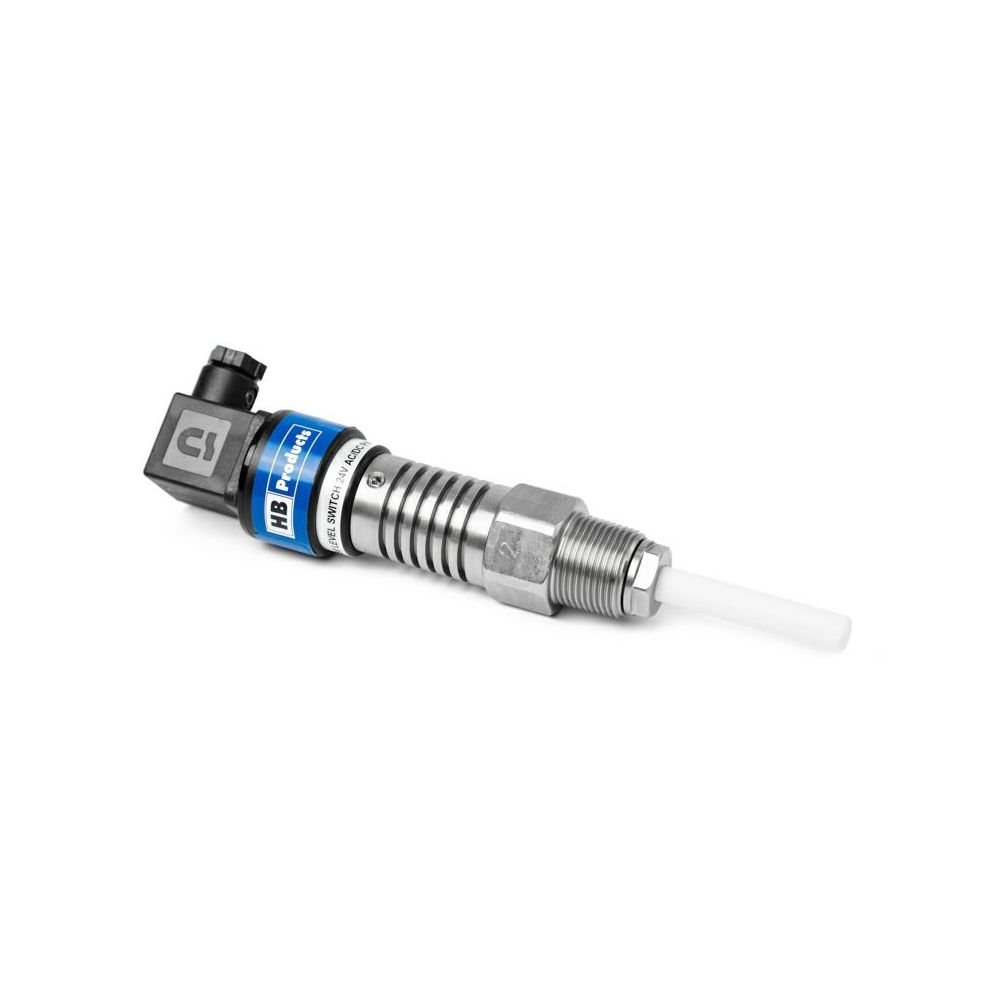

HBSR-HFC-PNP/NC-4 HB Products Liquid Level Switch for HFC/HFO - IP54

Liquid Level Switch for HFC/HFO - IP54 Output: PNP, Contact function: NC 3/4 BSPT - with set screw connection

Add to Quote to request pricing

Qty:

Save for Later

Ask us a question about this product

Details

HBSR-HFC is a level switch for the detection of common HFC refrigerants.Typically it is installed in/on the refrigerant vessels, pump separators, economisers or heat exchangers.The sensor is built to resist high pressure and low temperatures.Product Features:Proven sensor technology for simple transsistor output PNP/NPN and NO/NC contact function.Designed for the industrial refrigeration industry - max pressure 100 bar.Clear indication with LED when refrigerant is detected.Split design which makes it easy to install and make diagnostic on.

More Information

More Information
Weight	5.050000
Condition	New
Brand	HB Products
Thread Type	3/4" BSPT
Contacts	NC
Transistor Type	PNP
Mechanical Connection	with Set Screw Connection
Ambient Temperature	-22°/122°F (-30°/50° C)
Current Consumption	< 10 mA
VAC	24 V AC/DC + 10%
Plug Connection	ISO4400/DIN 43650 - 4 pins
Maximum Pressure	100 bar
Protection Degree	IP54
Vibrations	IEC 68-2-6 (4g)
Material - Mechanical Parts	AISI 304 / PTFE
Material - Electrical Parts	Nylon 6 (PA)
EMC Test	EN 61000-2
Width	9.4"
Length	4"
Height	11.8
