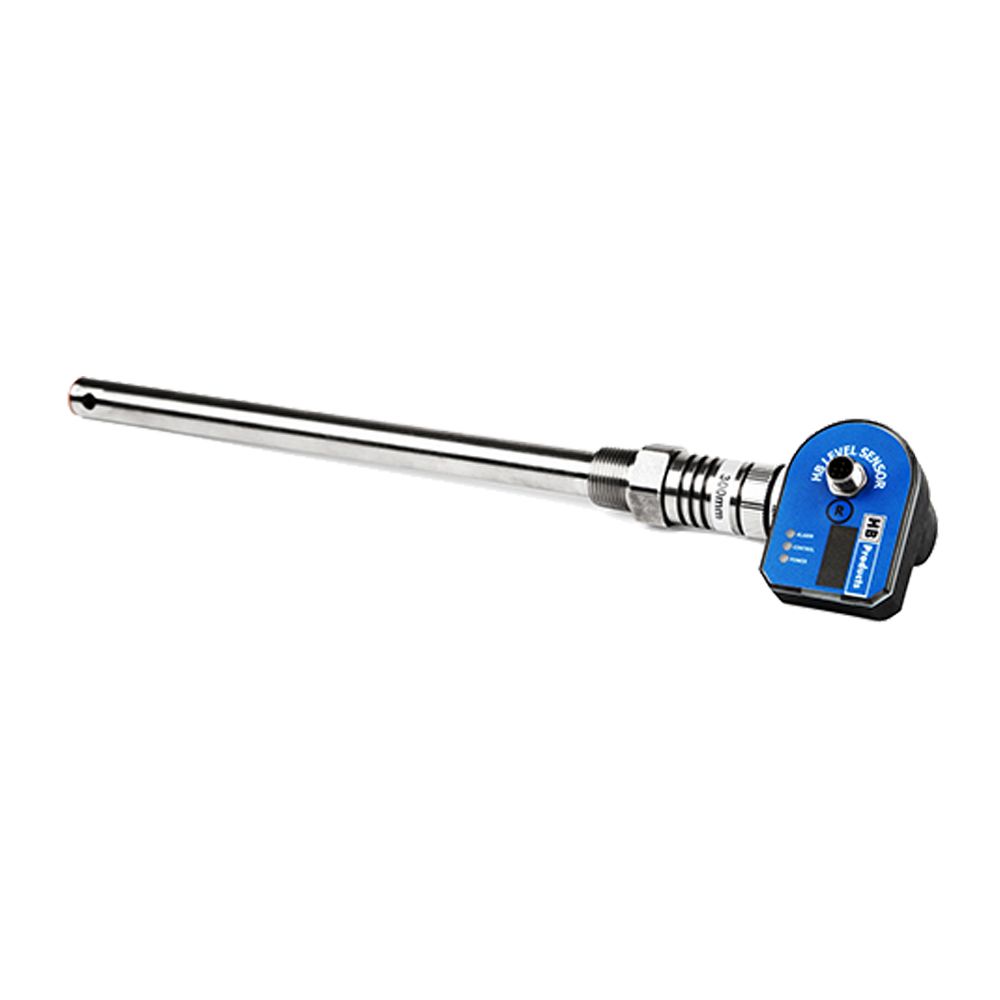

HBLC-CO2-4-2 HB Products 3/4 NPT CO2 Level Sensor with display

CO2 Level Sensor with display Length: 400mm (15,74 ) Thread: 3/4 NPT

Web Price $1,380.00 List Price $2,231.38 List Price $2,231.38

Qty:

Add to My Parts

Details

HBLC-CO2 is designed for the measurement of CO2 refrigerant level in chillers, evaporators and condensers.The sensor detects the refrigerant and transmits the signal to an analog 4-20 mA signal.Product Features:Complete solution with sensor and transmitter in one unit.Simple to install by one thread sleeve. A cost optimised solution.LED indication of power supply and alarm status.Unique split design which make it easy to install and make diagnostic.

More Information

More Information
Weight	5.050000
Condition	New
Brand	HB Products
Thread Type	3/4" NPT
Direct Valve Control	None
Length	400 mm (15.75")
Contacts	NO/NC
Transistor Type	PNP/NPN
Ambient Temperature	-22°/122°F (-30°/50° C)
Analog Output	4-20 mA
VAC	24 AC/DC + 10%
Plug Connection	M12, 5 pins - DIN 0627
Maximum Pressure	150 bar
Protection Degree	IP65
Material - Liquid Parts	AISI 304 / PTFE
Material - Electrical Parts	Nylon 6 (PA)
Vibrations	IEC 68-2-6 (4g)
EMC Test	EN 61000-2
Refrigerant Temperature	-67°/86°F (-55°/30°C)
Length	4.7"
Width	4.7"
Height	24.4"
