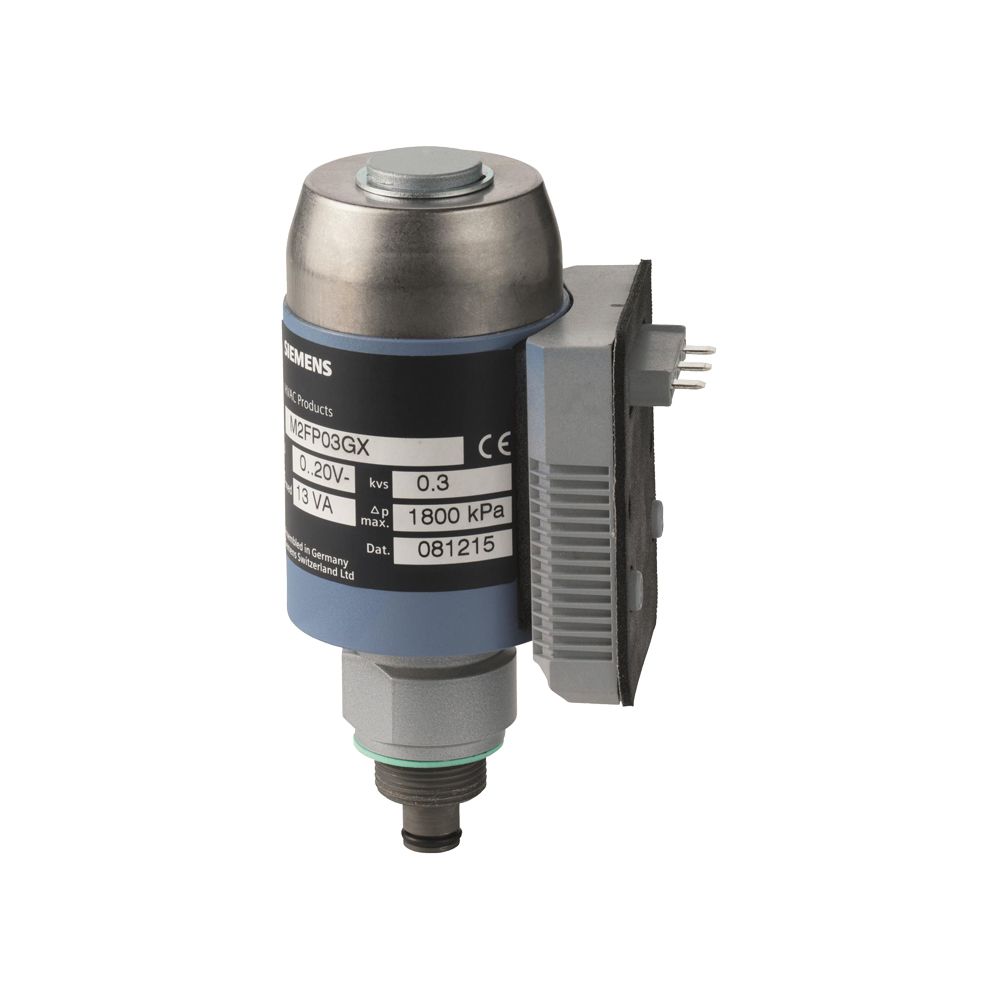

Siemens M2FP03GX HB Products 2-Port Modulating Pilot Valve to Control

M2FP03GX is a modulating valve for the connection to the refrigerant level control sensor type HBLC. It can be used for all refrigerants and has a fast reaction time. The modulating valve requires only supply and connection from the HBLC.

• 2-port modulating pilot valve with magnetic actuator, PN32, AC 24 V, DC 0 to 10 V / 4 to 20 mA / 0 to 20 Phs to control main valves
• Hermetically sealed 2-port valve as a control valve for main valves from 2" to 5".
• PN32 with threaded connections
• For use with refrigerants such as R22, R134a, R404A, R407C, R507 and ammonia R717

The Siemens M2FP Series is for capacity requirements of 6 – 354 Kvs [m3 /h]. We recommend Siemens valves for evaporators larger than 150 kw.

Product Features:

• Short positioning time (approx 1 s)
• High resolution
• Hermetically sealed
• Versatile electrical interface with terminal housing ZM..
• Friction free
• Robust and maintenance-free
