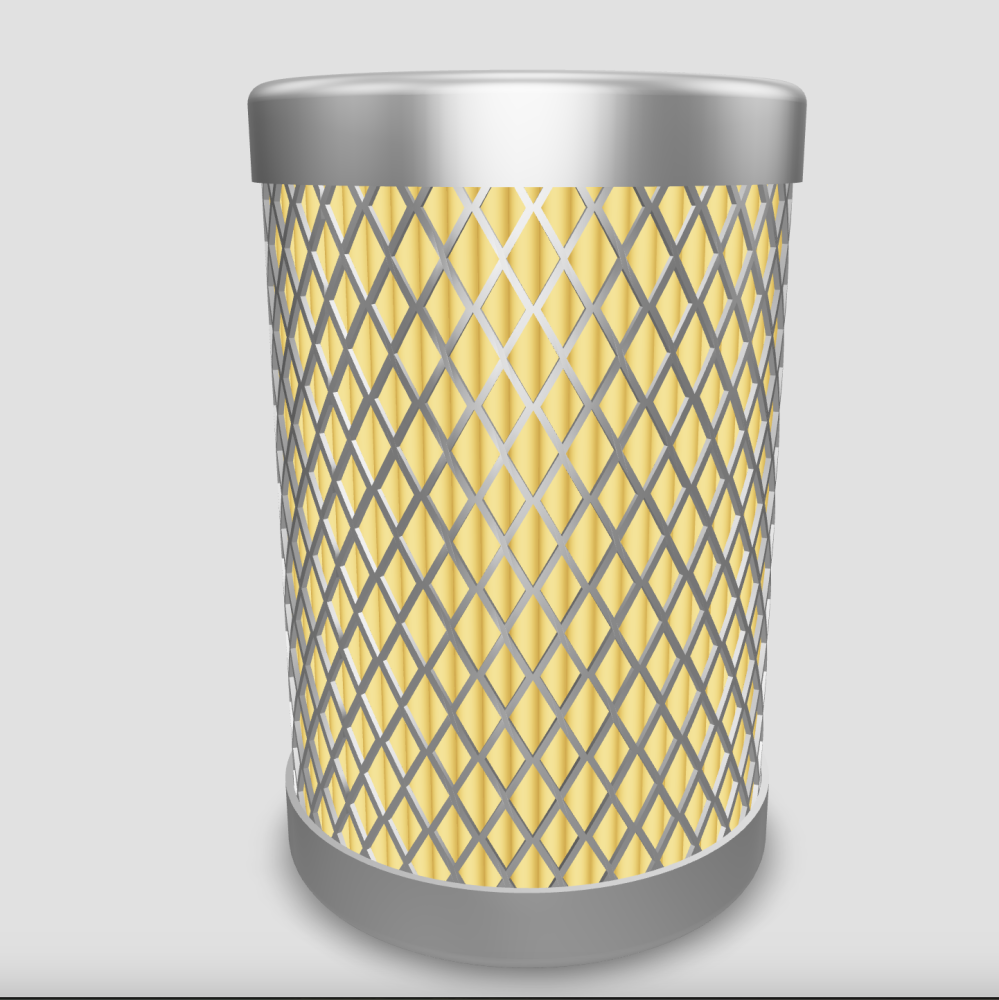

S-848-F Henry Replacement Core Filter, "FIL-COR" Filter

Henry S-848-F Replacement Core Filter, "FIL-COR" Filter

The function of a filter drier is to remove system contaminants, acid and moisture.

S-848-F

• Filter element
• Low-pressure drop
• Use when moisture removal is not required

Applications

The Henry Technologies range of replaceable core filter driers are designed to be used in both the liquid and suction lines of refrigeration and air-conditioning systems. The product range is suitable for use with HCFC, HFC and CO refrigerants (see core data).

Main Features

• Proven system protector
• High filtering capability
• High moisture absorption and acid removal
• Stainless steel mesh screen
• Solid copper full flow connections
• Interchangeable cores
• Corrosion-resistant , powder coated shells
• 1/4 NPT Pressure Tapping
• Nickel Plated Steel Cover Plate

Materials of Construction

Drier Shells

The main shell and fixed end caps are constructed from carbon steel and are powder coated for corrosion resistance. The cover plate is constructed from nickel plated steel. The ODS connections are copper.

Cores

Each core is constructed from a molded composite of desiccant material(s) bonded to provide very high mechanical strength, micronic filtration, high moisture absorption and acid removal where applicable.Each core is fully activated and placed in a hermetically sealed container.

Technical Specifications

• Maximum working pressure = 609 PSI (42 Bar)
• Allowable operating temperature = -40°F to +158°F (-40°C to +70°C)
