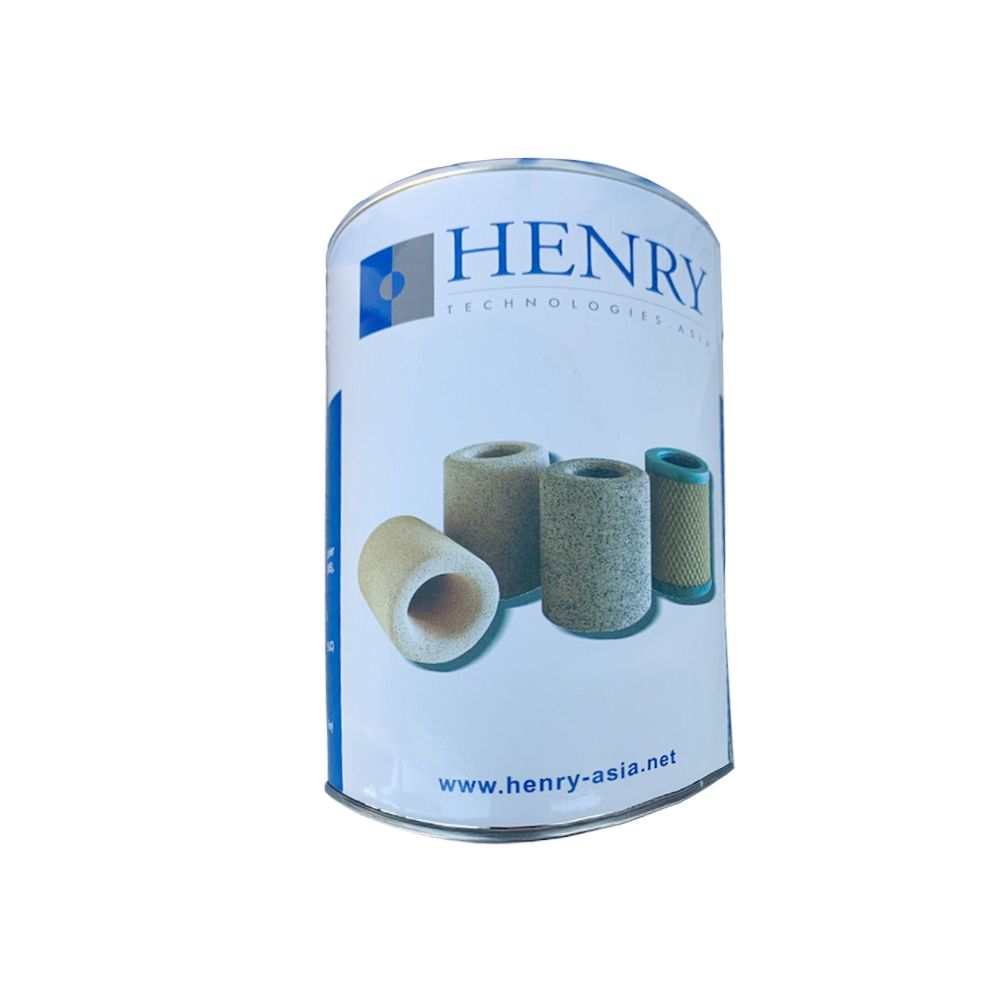

S-848-CC Henry Replacement Core Filter, DRI-COR Burnout Filter

Henry S-848-CC Replaceable Core Filter. 47/48/5% molecular sieve/activated alumina/activated carbon. High acid absorption. Suitable for use after compressor burnout. Suitable for HCFC, HFC and CO2 refrigerants. Not suitable for oils containing additives.

Add to Quote to request pricing

Qty:

Save for Later

Estimate shipping for this product

Country

State/Province

Zip/Postal Code

Ask us a question about this product

Details

The function of a filter drier is to remove system contaminants, acid and moisture.

S-848-CC

47/48/5% molecular sieve/activated alumina/activated carbon
High acid absorption
Suitable for use after compressor burnout
Suitable for HCFC, HFC and CO2 refrigerant
Not suitable for oils containing additives

Applications

The Henry Technologies range of replaceable core filter driers are designed to be used in both the liquid and suction lines of refrigeration and air-conditioning systems.

Main Features

Proven system protector
High filtering capability
High moisture absorption and acid removal
Stainless steel mesh screen
Solid copper full flow connections
Interchangeable cores
Corrosion-resistant , powder-coated shells
1/4 NPT Pressure Tapping
Nickel-Plated Steel Cover Plate

Materials of Construction

The main shell and fixed end caps are constructed from carbon steel and are powder coated for corrosion resistance. The cover plate is constructed from nickel-plated steel. The ODS connections are copper.

Cores

Each core is constructed from a molded composite of desiccant material(s) bonded to provide very high mechanical strength, micronic filtration, high moisture absorption and acid removal where applicable.Each core is fully activated and placed in a hermetically sealed container.

Technical Specifications
