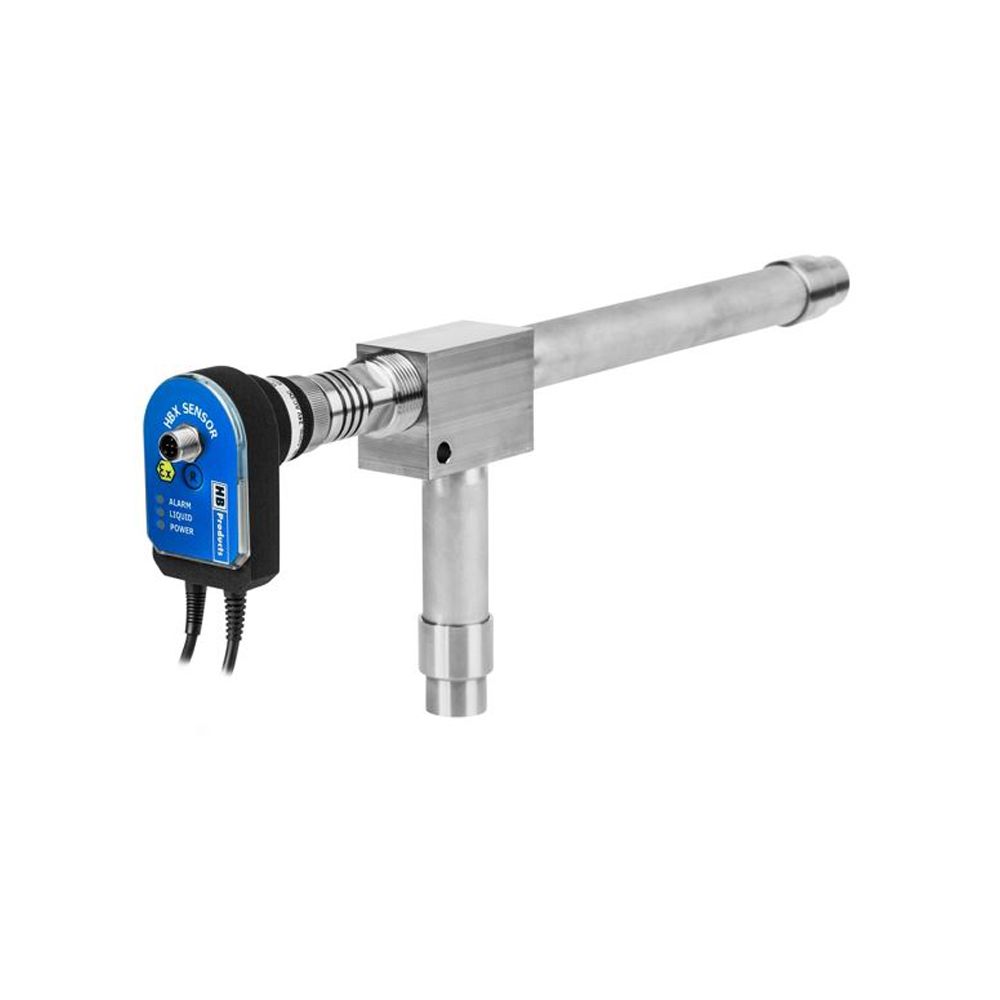

HBX-DX-CO2-SS-1/2 HB Products Vapor Quality Control Sensor for CO2

The Angle Rod version is suited for smaller systems and is made in stainless steel. It accepts flow in both directions and is suited for all common refrigerants. For HFC/HFO’s you need to pick an over sized sensor to keep down pressure loss.The sensor comes with reductions to compensate for a restricted flow area as standard. The sensor is made in stainless steel and can be butt welded (TIG) or brazed into the system. The sensor element can be removed and cleaned if necessary. The sensor is available from 1/4" to 1" pipe size.Product Features:Measures the volumetric concentration of gas in a gas/liquid mixtureBalanced evaporator control to achieve semi-flooded operation with high heat transferAble to control an expansion valve directly with simultaneously analog 4-20mA output to a PLCCan be used to optimize and control both DX systems and overfeed systemsInstant measurement and analog outputCan be used for all common refrigerants
