SKU
HBTS-PT100/NPT/60
Brand:

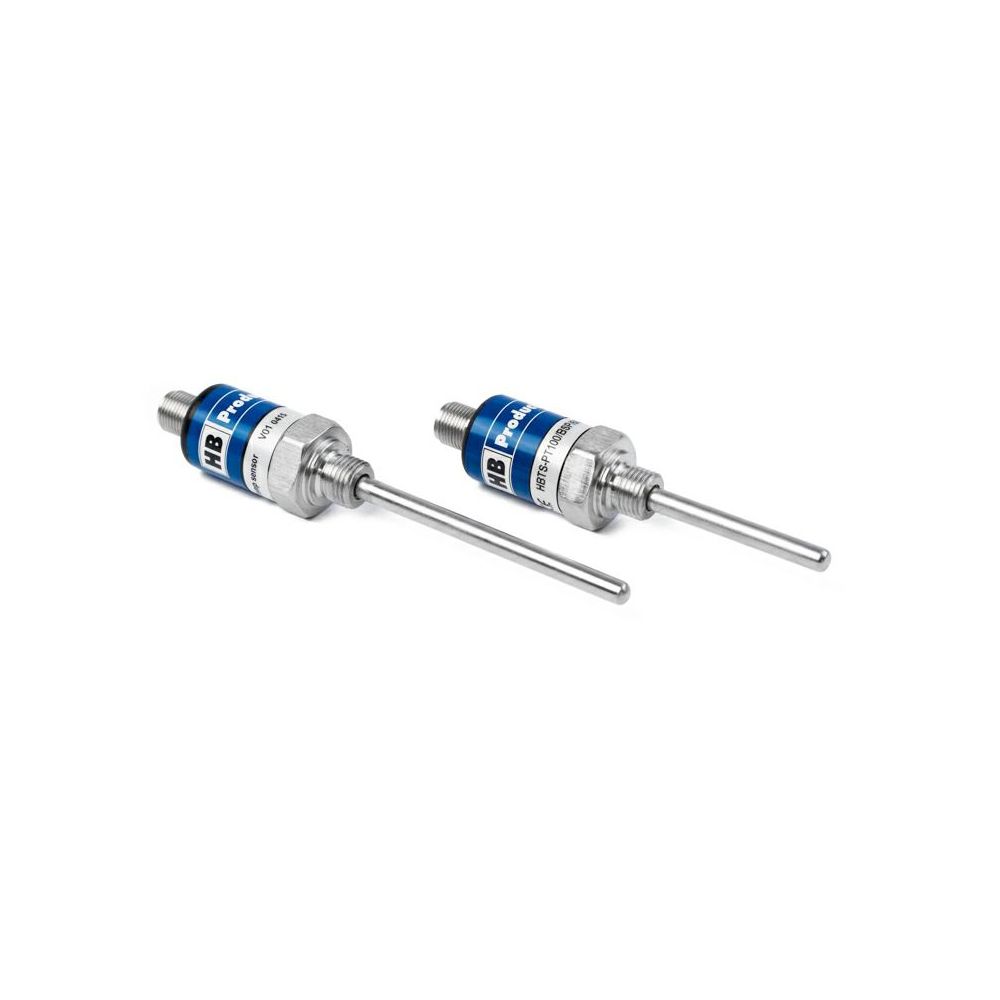

HBTS-PT100/NPT/60 HB Products Temperature Sensor- 4-wire - -50 to 130°C
Temperature Sensor- 4-wire - -50 - 130°C PT100 - Ø6 x 60mm sensor element 1/4 NPT - incl. sensor well - M12 connection
Add to Quote to request pricing
Details
HBTS is a temperature sensor in accordance with DIN 60751, and it is available in two variants, PT100 and PT1000 – DIN B – class 3. The sensor is designed for the refrigeration industry where servicing of the electronics can be carried out without emptying the system of refrigerant. The sensor is delivered with a 60 & 90 mm sensor element length and a 6 mm sensor diameter. Sensor well is included with the sensor.Product Features:4-wire PT100 orr PT1000 sensor element DIN B class 1/3 - DIN 60751Refrigeration industry design - max pressure 150 bar.Temperature area: -50 to +130°CM12 plug connection - DIN 0627
More Information
| Weight | 5.050000 |
|---|---|
| Condition | New |
| Brand | HB Products |
| Thread Type | 1/4" NPT |
| Temperature Probe | PT100 |
| Ambient Temperature | -616°/122°F (-360°/50° C) |
| Probe Length | 60 mm |
| Plug Connection | M12 - DIN 0627 |
| Maximum Pressure | 150 bar |
| Protection Degree | IP67 |
| Vibrations | IEC 68-2-6 (4g) |
| Material - Liquid Parts | AISI 304 |
| Material - Electrical Parts | Plast |
| EMC Test | EN 61000-2 |
| Refrigerant Temperature | -67°/266°F (-55°/130°C) |
| Sensor Design | 4 wire |
| Sensor Class | DIN B - kl. 1/3 |
| Sensor Element | Ø6 - 60/90 mm |
| Length | 4.3" |
| Width | 6" |
| Height | 7.1" |
