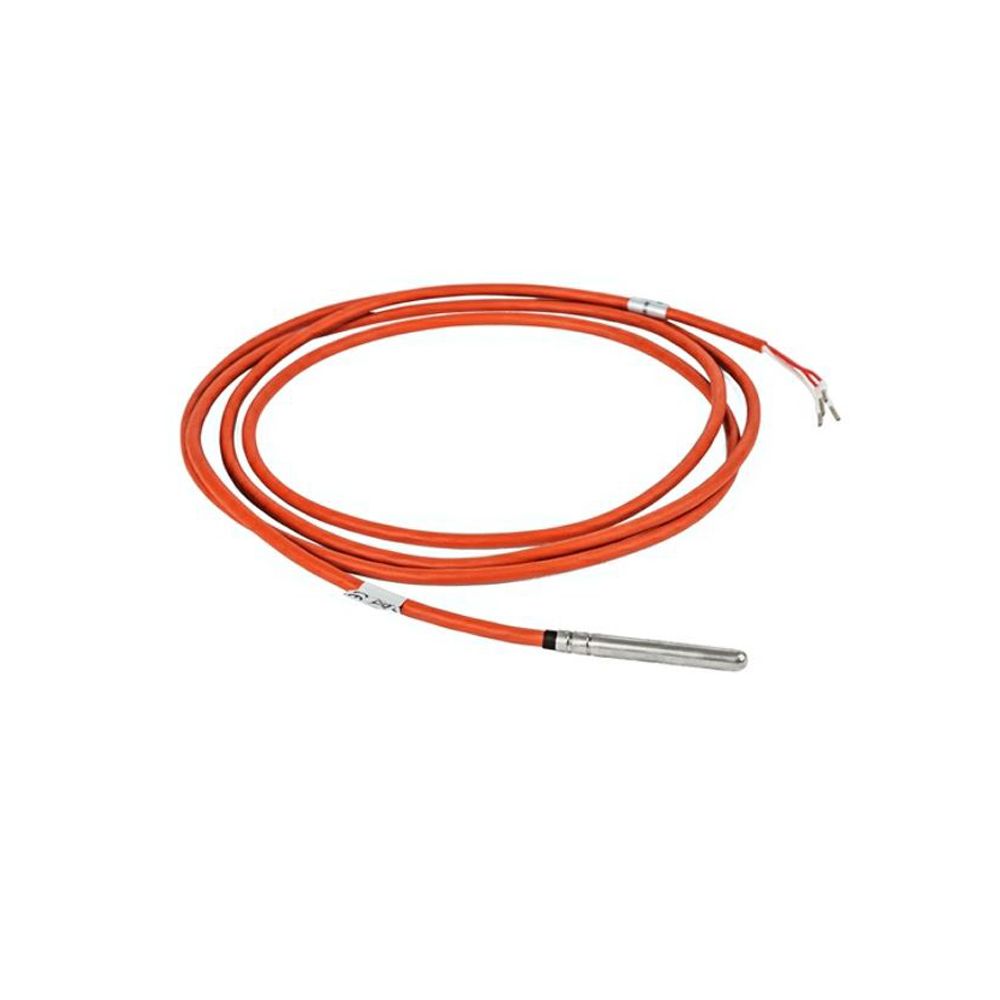

The Cable Temperature Sensors are used as signal sensors for electronic thermostats, regulators and thermometers.
The sensors can be used virtually anywhere where you want to measure or monitor temperature especially for applications in the industrial refrigeration industry. The sensor can be mounted in a sensor well or directly.
The HBTS-PT1000/cable is also included as a spare part for the HBDF-MK2 sensor.
Product Features:
Weight | 2.000000 |
---|---|
Condition | New |
Manufacturer | HB Products |
Temperature Probe | PT100 |
Ambient Temperature | -616°/122°F (-360°/50° C) |
Plug Connection | M12 - DIN 0627 |
Cable (in/m) | 2 meters (78.74") |
Maximum Pressure | 150 bar |
Protection Degree | IP67 |
Vibrations | IEC 68-2-6 (4g) |
Material - Liquid Parts | AISI 304 |
Material - Electrical Parts | Plast |
EMC Test | EN 61000-2 |
Refrigerant Temperature | -67°/266°F (-55°/130°C) |
Sensor Design | 4 wire |
Sensor Class | DIN B - kl. 1/3 |
Sensor Element | Ø6 - 60/90 mm |
Length | 4.3" |
Width | 6" |
Height | 7.1" |
