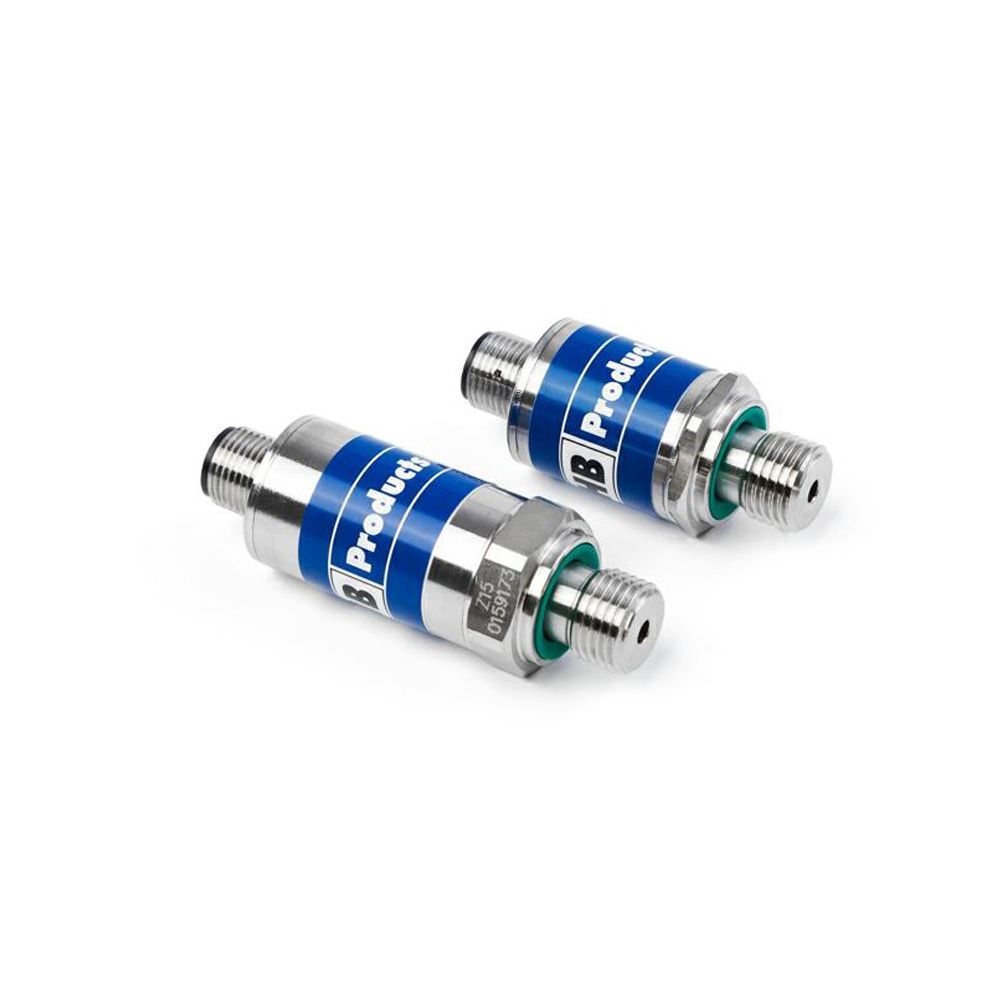

Pressure sensor - 1/4 NPT Pressure: -1-200 bar M12 plug connection
Add to Quote to request pricing
Details
HBPS is a pressure sensor that is specially developed for the refrigeration industry. The sensor has a stainless membrane, and the housing is also made of stainless steel. It has a quick reaction time of < 2 ms, and it is accessible in 3 pressure ranges of 0-6 bar, -1-25 bar and -1-200 bar.Product Features:Minimal and compact design.Simple wire connection - 2-wire technology - 4 to 20 mA.Refrigeration industry design - max pressure 200 bar.Temperature range: -40 to +125°C.M12 plug connection - DIN 0627.
More Information
| Weight | 5.050000 |
|---|---|
| Condition | New |
| Brand | HB Products |
| Thread Type | 1/4" NPT |
| Ambient Temperature | -40°/221°F (-40°/105° C) |
| Pressure Range | ‐1 to 200 bar |
| Analog Output | 4-20 mA |
| Plug Connection | M12 - DIN 0627 |
| Protection Degree | IP67 |
| Vibrations | IEC 68-2-6 (4g) |
| Material - Liquid Parts | AISI 304 |
| Material - Electrical Parts | AISI 304 |
| EMC Test | EN 61000-2 |
| Power | 9 to 32 V DC |
| Refrigerant Temperature | -40°/257°F (-40°/125°C) |
| Length | 4.3" |
| Width | 6" |
| Height | 7.1" |
