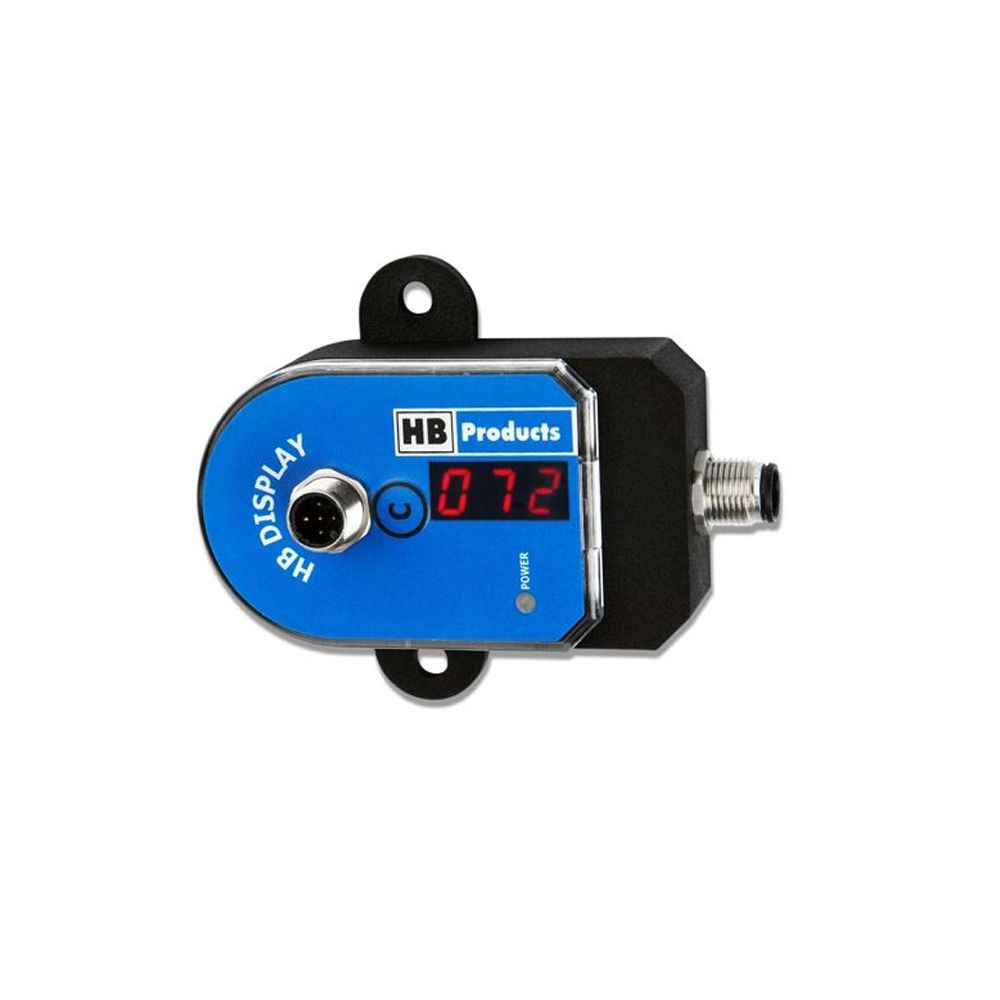

HBMD-L HB Products Multi Display for HB Level Sensor

The Multi Display is available in two versions used for displaying the pH value or level display. The sensor is identical for the two applications except for a setting in the software. The difference is in the scope of supply.

HBMD-L is a display for showing the level value directly like the display on the level sensor. The display can be installed anywhere on the cable between a level sensor and the PLC using M12 cables.

The sensor is supplied with a 5 m M12 extension cable.

Product Features:

• Displaying level 0-100 %
• Simple installation between the level sensor and the PLC using M12 Connection
• 24 V AC/DC power supply via M12 plug
