KDC 080 A 2 bar Hydrocarbon
Add to Quote to request pricing
Details

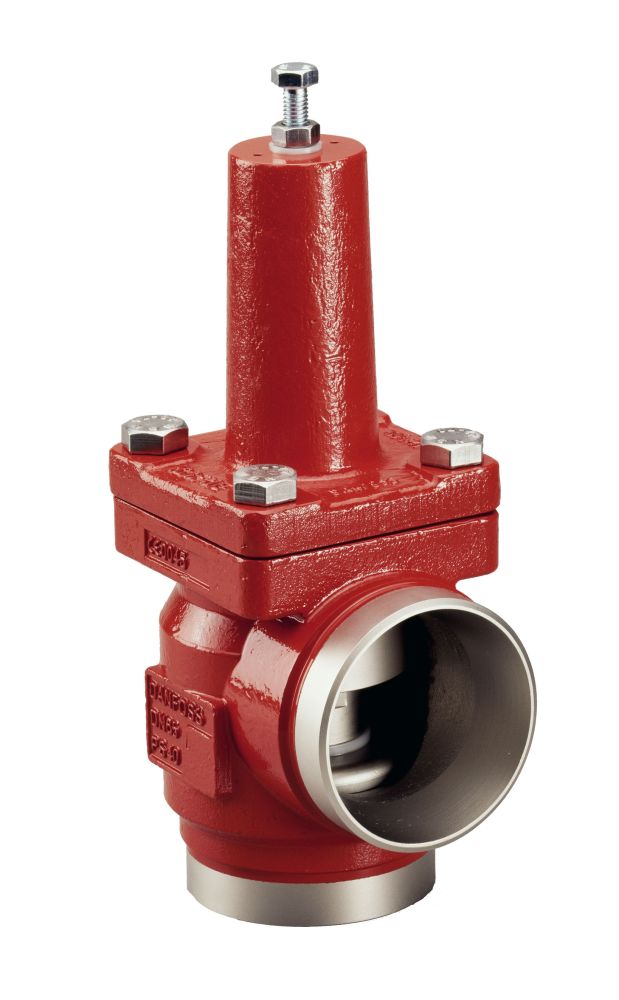

The KDC valve is a pressure control valve. The valve controls the discharge pressure of the compressor to ensure fast build-up of pressure and lubrication pressure. The valve also acts as a check valve in the discharge line of the compressor. The KDC valve is force-controlled so that when pressure in the oil separator becomes 2 bar (29 psi) higher than the suction pressure, the spring is compressed and the valve opens. In lowpressure units (boosters), the spring requires a diffrential pressure of 0.5 bar (7 psi) for the valve to open.
More Information
| Weight | 23.740000 |
|---|---|
| Condition | New |
| Brand | Danfoss |
| Minimum Temperature Range C | -50 °C |
| Minimum Temperature Range F | -58 °F |
| Maximum Temperature Range F | 302 °F |
| Maximum Temperature Range C | 150 °C |
| Max Medium Temperature Range C | 40 bar |
| Max Medium Temperature Range F | 580 psig |
| Pressure Range | 40 bar g (580 psig) |
| GTIN/UPC | 5702428883832 |
