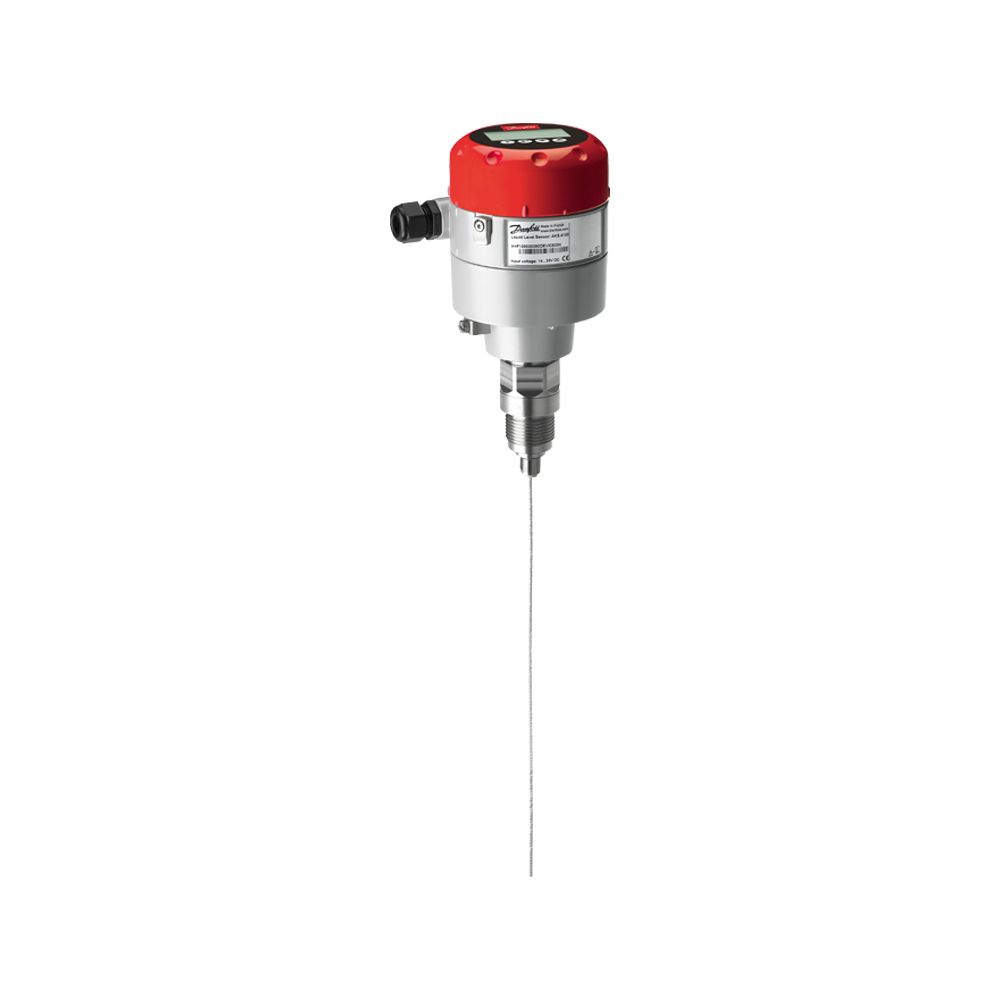

Danfoss AKS 4100 Liquid Level Sensor with 5-meter cable and HMI (Human Machine Interface).
The Danfoss AKS 4100/4100U liquid level sensor is designed specifically to measure liquid levels in a wide range of refrigeration applications. The AKS 4100/4100U liquid level sensor is based on a proven technology called Time Domain Reflectometry (TDR) or Guided Micro Wave. Danfoss AKS 4100/4100U liquid level sensors can be used to measure the liquid level of many different refrigerants in vessels, accumulators, receivers, standpipes, etc. The electrical output is a 2-wired, loop-powered 4 - 20 mA output signal, which is proportional to the refrigerant liquid level. AKS 4100/4100U in a cable version is suitable for HCFC, Non-flammable HFC and R717 (Ammonia), and differing lengths from 800 mm / 31.5 in. and up to 5000 mm / 197 in..
Key Features:
Refrigerants:
Weight | 8.090000 |
---|---|
Manufacturer | Danfoss |
Condition | New |
Connection Size | 1 in. |
Connection Type | G |
Minimum Temperature Range C | -60 °C |
Minimum Temperature Range F | -76 °F |
Maximum Temperature Range C | 100 °C |
Maximum Temperature Range F | 212 °F |
Maximum Working Pressure (BAR) | 100 bar |
Maximum Working Pressure (PSIG) | 1450 psig |
Minimum Ambient Temperature (C) | -40 °C |
Minimum Ambient Temperature (F) | -40 °F |
Maximum Ambient Temperature (C) | 80 °C |
Maximum Ambient Temperature (F) | 176 °F |
Supply voltage [V] DC [Max] | 30 V |
Supply voltage [V] DC [Min] | 14 V |
Output Signal | Min: 4 mA; Max: 20 mA |
Width | 10.0000 |
Height | 8.0000 |
Depth | 3.0000 |
