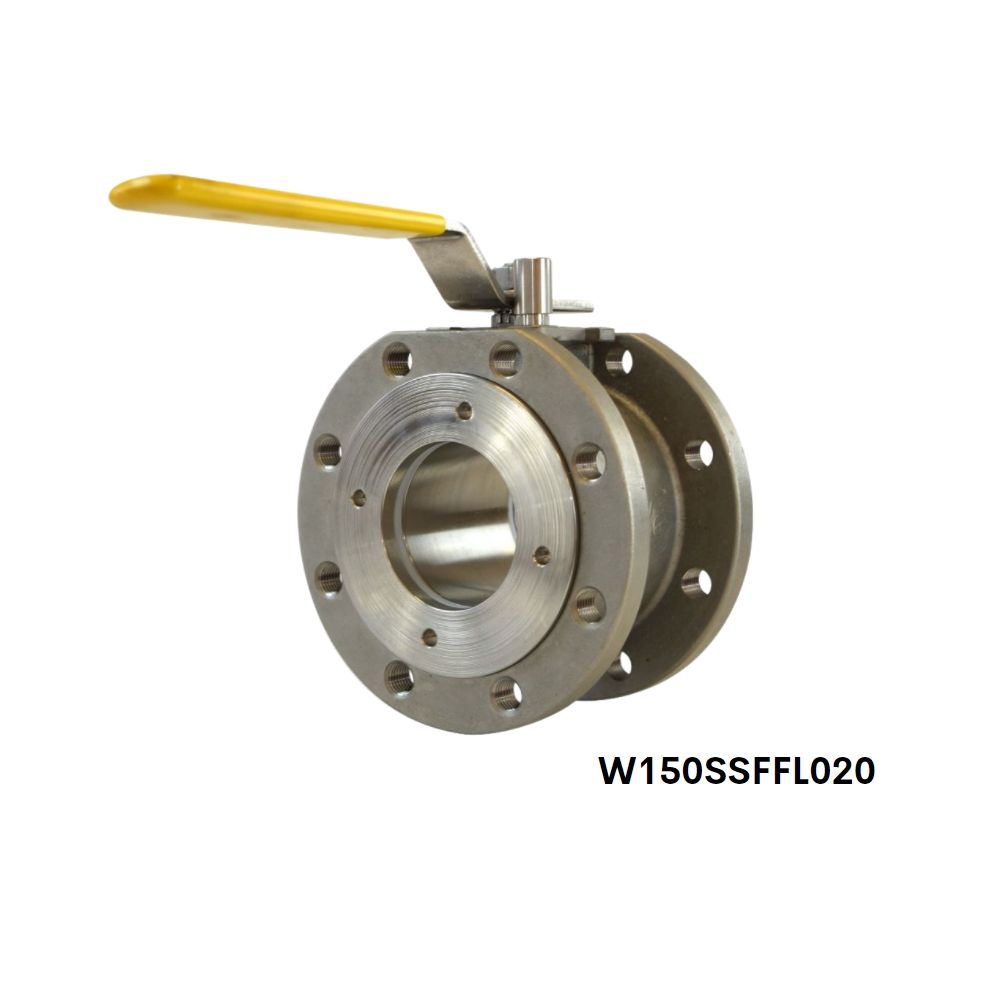

W150-SS-FF-L-020 Flo-Tite 3/4" Stainless Steel Kompact Series Ball Valves, Kompact Series Ball Valve W150

The Flo-Tite KOMPACT Series is designed as a single body construction, to allow ease of access for maintenance of the valve ball and seat without special tools. This valve is an advanced quarter-turn control valve which can be used as a switch on / off and proportionally adjusted. Kompact Series ball core is designed with special V type notch, which owns accuracy flow control, small volume and big flow coefficient. It is applicable to controlling gas, liquid, and solid particle medium. Due to zero clearance rotation, there is big shear force and self-cleaning property, especially applicable to controlling suspension with fibers, small solid particles, and solid grains. Therefore this product is widely used in petroleum, chemistry, papermaking, polysilicon, chemical fiber, electric power, metallurgy, pharmacy, environmental protection, and other industrial departments' self-control system.

Features:

• The valve body is tapped allowing use of cap screws to install valve between ANSI 150 LB flanges

Optional

• Transmitter isolation 45° handle for fitting insulation recess
• Pocketless design supplied with cavity fillers

Ideal Design for Control Valve

• Compact Control Package
• Economical low operating cost
• Characterized linear, V, or slotted ball design to meet your custom flow requirements
• Full Port Design
• Blow-out Proof Stem Design
• Double "D" Stem 1/2" thru 4"; 6" Square
• Foundary Heat Numbers
• ISO 5211 Mounting Pad
• Super-Tek Seating
• Low-Torque Design
• Live-loaded Stem Design
