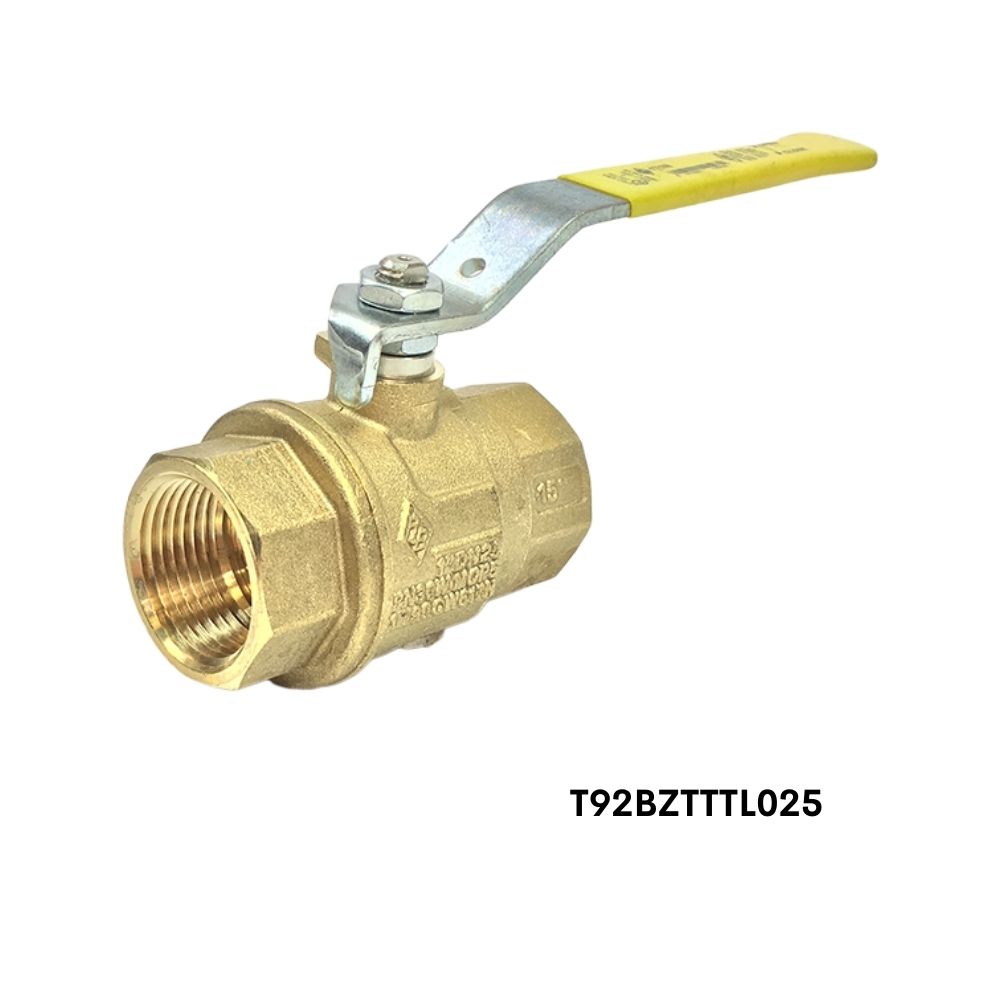

T92-BZ-TTT-L-025 Flo-Tite 1" 316SS/CF8M Ball/Stem Economy Ball Valves, RB T91/92 BZ

Full Port Brass - Commercial Ball Valves

RB Series: (1/4"-4" Full Port Hot Forged Brass Ball Valves)

• T91-BZ
• T92-BZ

Features:

• Blowout-proof nickel-plated brass stem
• NPT taper ANSI B1.20.1 female by female threads
• Full-Port to DIN 3357
• No metal-to-metal moving parts
• Silicon-free lubricant on all seals
• Travel stops on body to avoid stresses at the stem

Pressure:

• 600 PSI for sizes up to 2"
• 450 PSI for sizes over 2"

Temperature:

• -40°F to 366°F

Quality:

• 24h 100% seal test guaranteed
• Dual sealing system allows valve to be operated in either direction making installation easier
• No metal-to-metal moving parts
• Handle clearly shows ball position
• Silicon-free lubricant on all seals
• Chrome plated brass ball for longer life
• Travel stops on body to avoid stresses at stem
• Certificated by CSA International, the widely recognized and respected independent certification organization for public health safety

Body:

• Hot forged sand blasted, unplated brass body and cap sealed with Loctite or equivalent thread sealant
• Finest brass according to EN 12165 and EN12164 (formerly DIN 17660 and UNI 5705-65) specifications

Stem:

• Blowout-proof nickel plated brass stem
• Pure virgin PTFE adjustable packing gland and reinforced washer for lower torque and easy maintenance Triple stem seals in size over 2"
