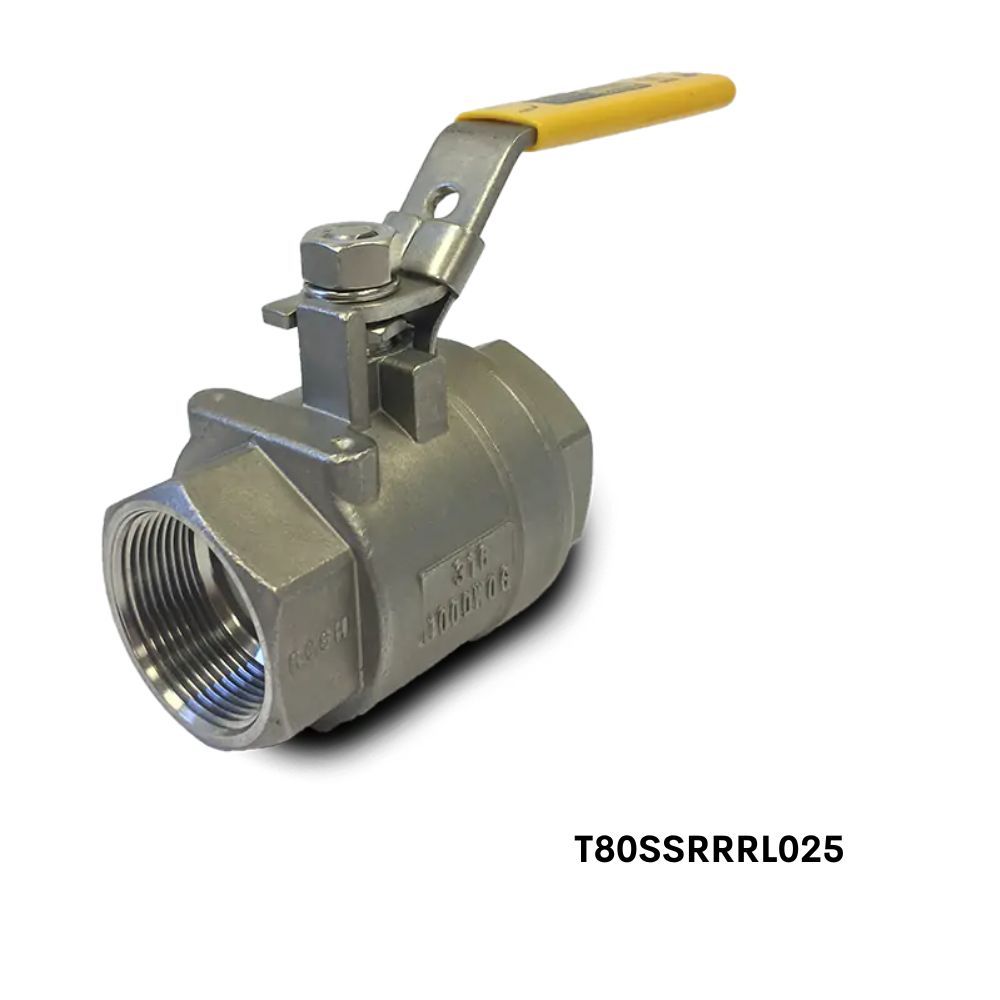

T80-SS-RRR-L-025 Flo-Tite 1" Stainless Steel Economy Ball Valves, EconoFlo T80 SS

The Flo-Tite T80 is designed as a split body, two-piece construction, to allow ease of access for maintenance of the valve ball and seat without special tools. Thisline of valves utilizesthe "free floating" ball principle. The ball is not fixed but is free to move with the line pressure. As a result, these valves are capable of tight shut-off with the flow in either direction or dead-ended, regardless of the position of the valve in the line. The downstream seat, which is opposite the pressurized side, of a closed valve, must carry the load exerted by the line pressure on the ball,while the upstream seat is subject to little load or wear. For this reason, it is sometimes possible to increase useful seat life by turning the valve end-for-end in the pipeline.

Features:

• Full Port – Straight through flow minismizes pressure drop and prolongs valve life
• Internal Entry Blow-out Proof Stem
• Locking Handle – Standard on all valves meet OSHA 1910.147
• Adjustable
• Bubble Tight – Zero Leakage
• Investment casting – improves dimensional control and reduces porosity
• Two Piece Econoflo Series – is and ideal general purpose stainless steel valve, meeting plant - wide applications.
