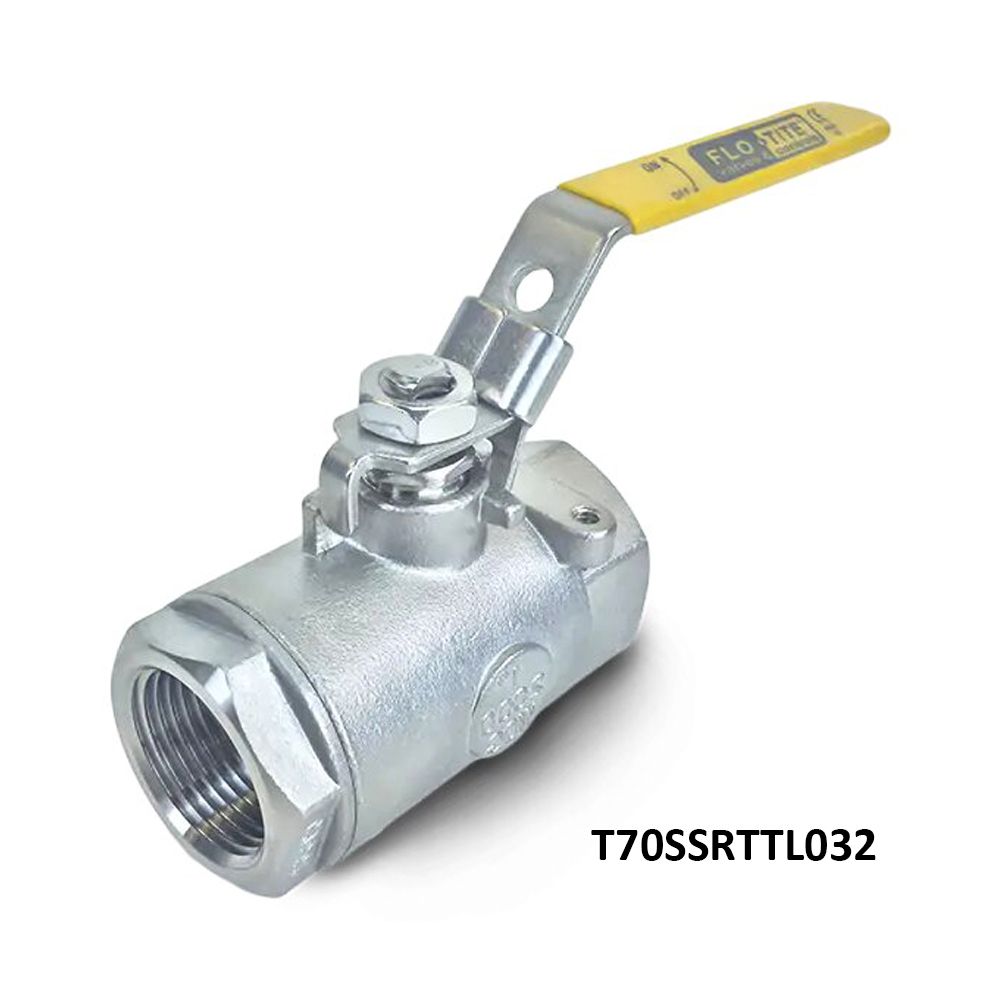

T70-SS-RTT-L-032 Flo-Tite 1-1/4 Stainless Steel Threaded Ball Valves, T70

The Flo-Tite T70 is designed as a split body, two-piece construction, to allow ease of access for maintenance of the valve ball and seat without special tools. Thisline of valves utilizesthe “free floating” ball principle. The ball is not fixed but is free to move with the line pressure. As a result, these valves are capable of tight shut-off with the flow in either direction or dead-ended, regardless of the position of the valve in the line. The downstream seat, which is opposite the pressurized side, of a closed valve, must carry the load exerted by the line pressure on the ball,while the upstream seat issubject to little load or wear. For this reason, it issometimes possible to increase usefulseat life by turning the valve end-for-end in the pipeline.Features:Quality Investment Cast BodyInternal Entry Blow-out Proof StemAdjustable Packing GlandSafety Type Locking HandleActuator Mounting PadAll Carbon Steel Bodies Are Black Phosphate Coated For Added Corrosion ResistanceModels:Stainless Steel 316 - T70-SSCarbon Steel WCB - T70-CSReinforced PTFE Seating Pressure Rating:2000 WOG 1/4" thru 1"1500 WOG 1-1/4" thru 2"Steam Rating: 150 psi (WSP)Temperature Range: -20°F to 450°F
