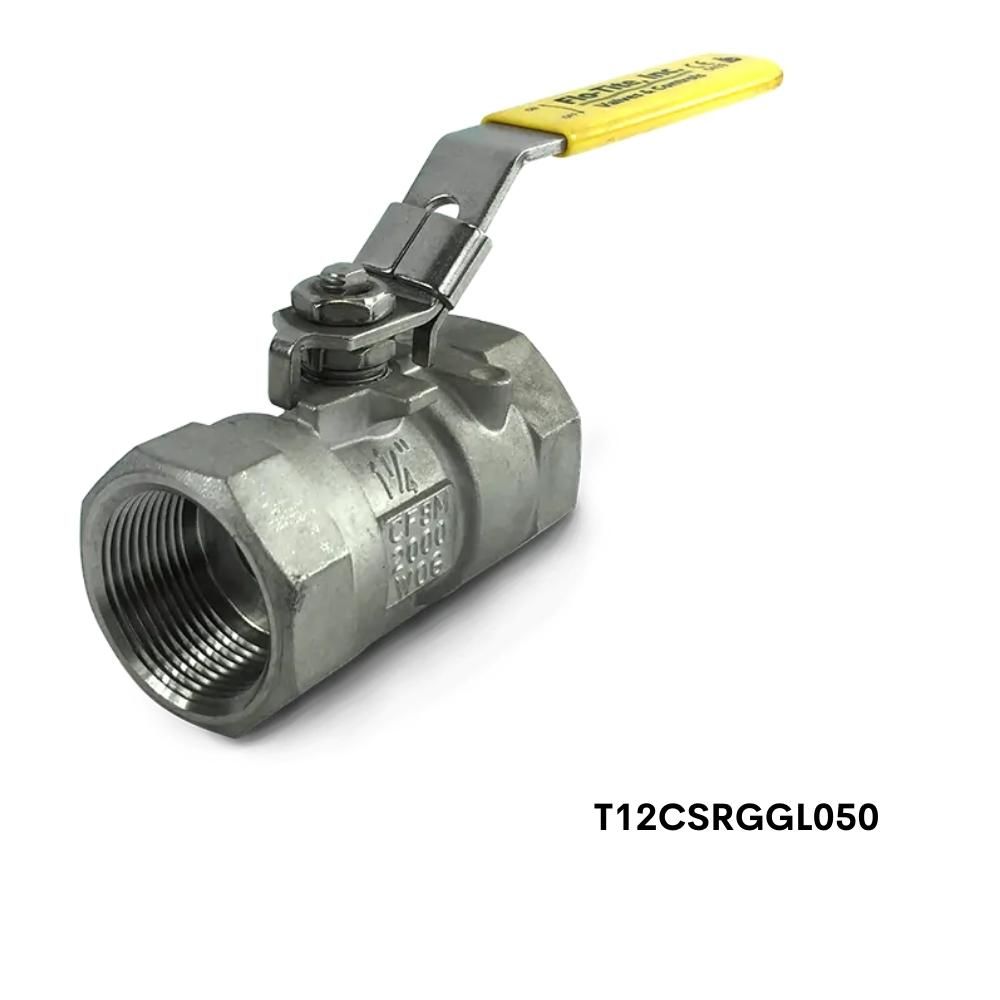

T12-CS-RGG-L-050 Flo-Tite 2" Carbon Steel Threaded Ball Valves, Omni Series T12

Fire Safe, Flo-Tite’s Model T12 valves are supplied as standard with graphite stem packing and body seal. Valves are certified fire safe. In the event of a fire, after heat destroys the primary resilient seat, the ball makes contact with the secondary metal seat, forming a secure seal. The graphite body seal prevents external leakage. The graphite live-loaded stem packing prevents stem leakage. All valves have anti-static devices as standard, grounding ball and stem to body.

Design Features:

• Economical 1-PC Design compact unibody delivers outstanding high pressure service in a cost effective package.
• Replaceable seats and seals
• All bodies are marked with a foundry heat number for full traceability
• Adjustable stem packing
• One piece body minimizes potential leak paths
• Fire Safe Certified to API607 4th Edition
• Seats - 25% carbon-PTFE
• Graphite packing
• Anti-static devices as standard, grounding ball & stem to body
• Safety locking handle lever & oval types
• Blow-out proof stem
• Actuator mounting pad
