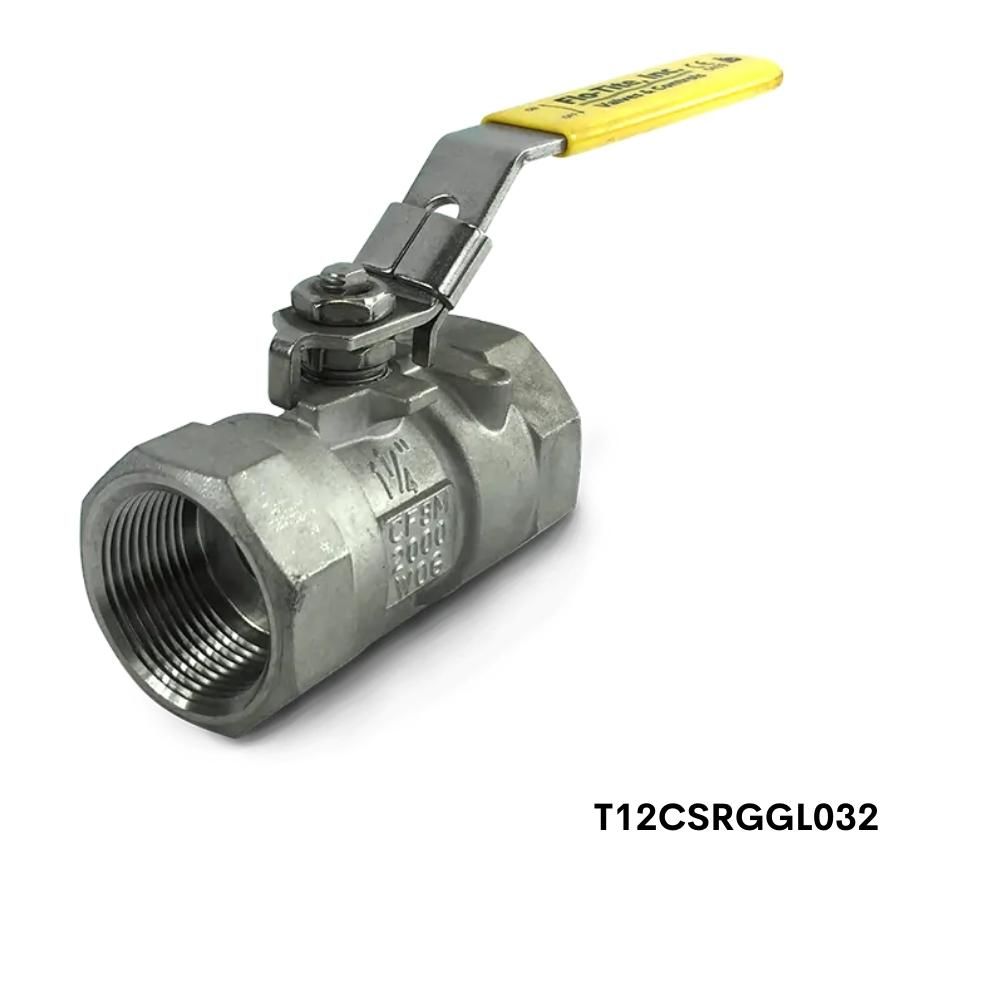

T12-CS-RGG-L-032 Flo-Tite 1-1/4 Carbon Steel Threaded Ball Valves, Omni Series T12

Fire Safe, Flo-Tite’s Model T12 valves are supplied as standard with graphite stem packing and body seal. Valves are certified fire safe. In the event of a fire, after heat destroys the primary resilient seat, the ball makes contact with the secondary metal seat, forming a secure seal. The graphite body seal prevents external leakage. The graphite live-loaded stem packing prevents stem leakage. All valves have anti-static devices as standard, grounding ball and stem to body.Design Features:Economical 1-PC Design compact unibody delivers outstanding high pressure service in a cost effective package.Replaceable seats and sealsAll bodies are marked with a foundry heat number for full traceabilityAdjustable stem packingOne piece body minimizes potential leak pathsFire Safe Certified to API607 4th EditionSeats - 25% carbon-PTFEGraphite packingAnti-static devices as standard, grounding ball & stem to bodySafety locking handle lever & oval typesBlow-out proof stemActuator mounting pad
