SSBV Hantemp Controls Stainless Steel Manual Ball Valves

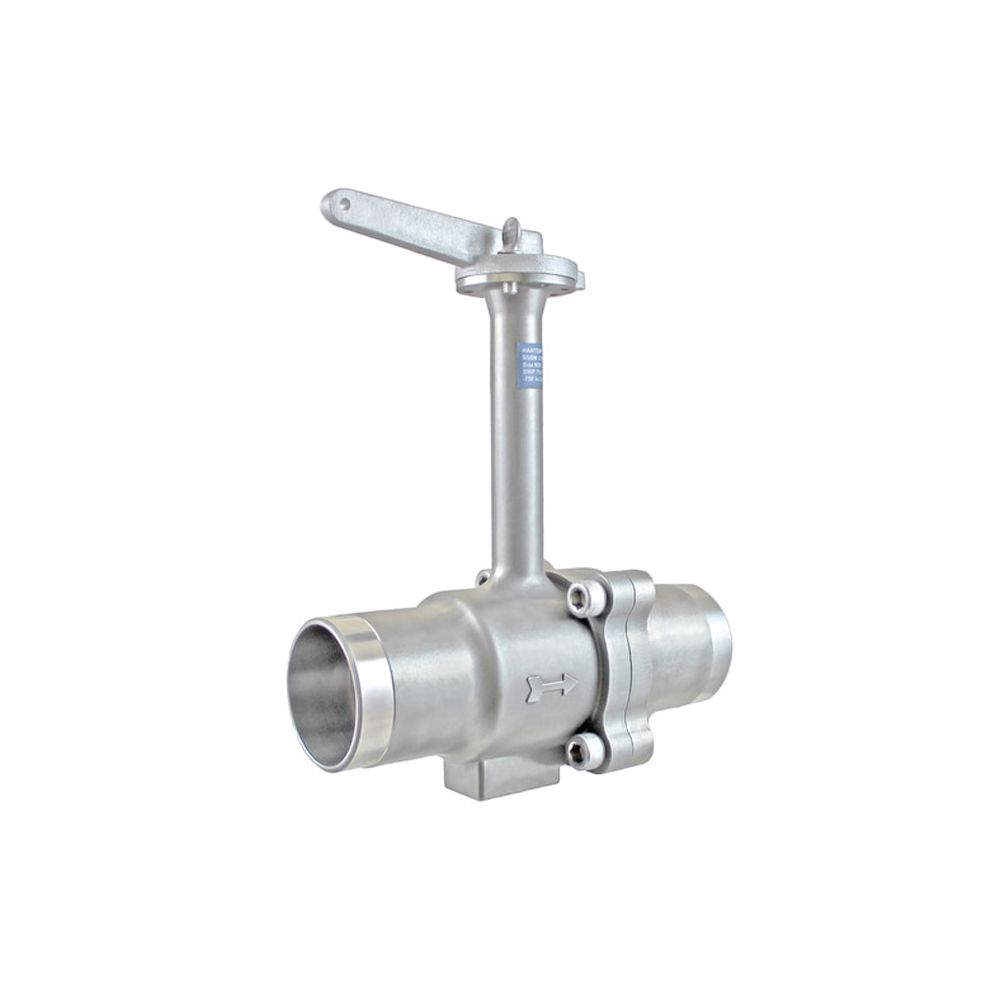

The HANTEMP Stainless Steel Manual Ball Valve SSBV features stainless steel construction, very low pressure drop, gradual opening and closing, integral reverse-flow check, standard F05 actuator mount, and an extended valve neck for simple insulation.

FEATURES

• Precise modulation and very low pressure drop
• Extended valve neck for total insulation
• Characterized V-Ports available for modulation
• Constructed of stainless steel
• 800 psig (55 bar) SWP; -70°F to +240°F (-57°C to +115°C) safe operating temperature
• ISO F05 Actuator Mounting Standard
• Available for flanged or weld inline installation
• Lock-out/tag-out option
• Conforms to IIAR Valve Standard

"Ball valves are increasingly popular for industrial refrigeration due to smooth operation and minimal pressure drop."
