NAVAC SK4TPHM1 Smart Refrigerant & Air Side Diagnostics Pro Kit

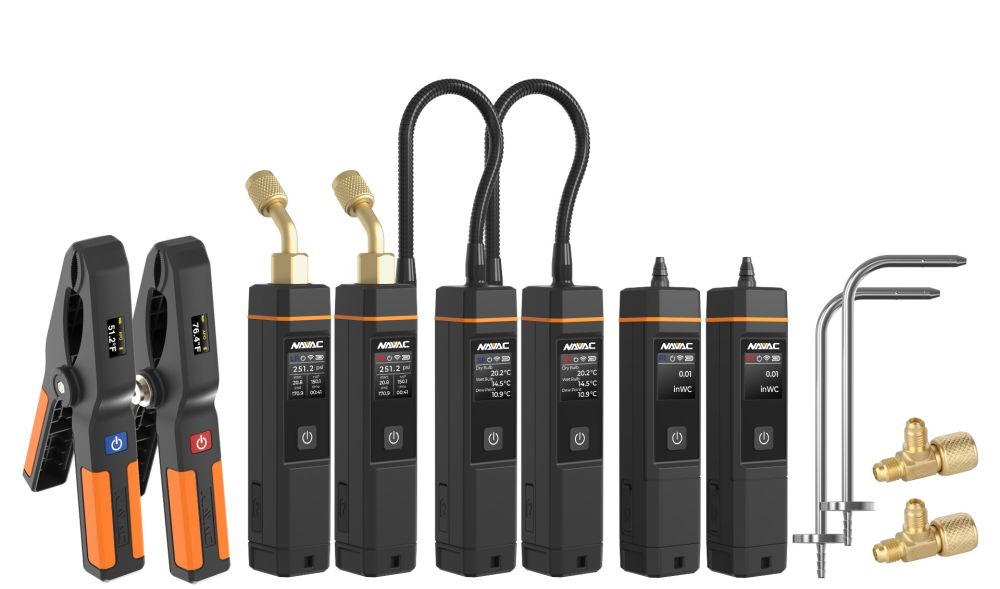

NAVAC SK4TPHM1 Smart Refrigerant and Air Side Diagnostics Pro Kit The SK4TPHM1 is NAVAC's top-tier wireless diagnostics kit — the SK3TPH1 configuration plus two NSM1 Bluetooth manometers for complete static pressure measurement coverage. Designed for HVAC technicians who need full refrigerant-side and air-side diagnostics in a single connected kit, the SK4TPHM1 works wirelessly through the myNAVAC App ecosystem and eliminates traditional manifold hoses from the setup entirely. What's in the Kit 1x NST1 low-side Bluetooth temperature clamp, 1x NST2 high-side Bluetooth temperature clamp, 2x NSP1 Bluetooth pressure probes, 2x NSH1 Bluetooth psychrometers, 2x NSM1 Bluetooth manometers, 2x F1030 1/4 in. SAE access tee connectors, 1x F2010 A2L left-hand thread adapter (1/4 in. LH FPT x 1/4 in. MPT). Probe Features and Display NSP1 pressure probes, NSH1 psychrometers, and NSM1 manometers each include built-in digital displays for standalone operation — no phone required on any probe. NST1/NST2 temperature clamps feature TFT displays, IP54 protection, and accept tube OD up to 1-5/8 in. (42 mm). All probes include auto power-off (2 hours, disableable) and individual carry bags. Connectivity All probes connect via Bluetooth 4.0 or above to the myNAVAC App and MeasureQuick App. Temperature clamps reach up to 450 ft. (150 m) line of sight. NSP1, NSH1, and NSM1 reach up to 164 ft. (50 m). NSP1 and NSH1 run on rechargeable 1,200 mAh lithium batteries (USB-C) rated over 200 hours screen-off or over 40 hours screen-on. NSM1 runs on a rechargeable 1,200 mAh lithium battery (Type-C) rated at 150 hours. NST1/NST2 use 2x AAA batteries. Technical Specifications NST1/NST2 - Temp Range: -40°F to 257°F (-40°C to 125°C) - Accuracy: plus or minus 2.3°F (plus or minus 1.3°C) - Max Tube OD: 1-5/8 in. (42 mm) - Bluetooth Range: up to 450 ft. (150 m) - IP Rating: IP54 - Battery: 2x AAA NSP1 - Pressure Range: -29 inHg to 725 psi - Max Overload Pressure: 1,087 psi (7,500 kPa) - Accuracy: plus or minus 0.5% of full range - Resolution: 0.01 psi - Bluetooth Range: up to 164 ft. (50 m) - Battery: 1,200 mAh rechargeable lithium, USB-C; over 200h screen-off / over 40h screen-on NSH1 - Temp Range: -40°F to 249.8°F - Humidity Range: 0 to 100% RH - Humidity Accuracy: plus or minus 2.0% RH (10 to 90% RH at 77°F) - Flexible Probe: 7.9 in. (200 mm) length, 0.39 in. (10 mm) diameter - Bluetooth Range: up to 164 ft. (50 m) - Battery: 1,200 mAh rechargeable lithium, USB-C; over 200h screen-off / over 40h screen-on NSM1 - Measurement Range: -8 to 64 inWC - Max Overload Pressure: 400 inWC (100 kPa) - Accuracy: plus or minus 0.02 inWC (0 to plus or minus 2.00 inWC); plus or minus 1.5% FS (plus or minus 2.00 to plus or minus 60.00 inWC) - Resolution: 0.01 inWC - Bluetooth Range: up to 164 ft. (50 m) - Battery: 1,200 mAh rechargeable lithium, Type-C; 150 hours - Accessories: soft tube with brass adapter, static pressure probe with tube, gas detection adapter F1030 - 1/4 in. SAE M x 1/4 in. SAE FE x 1/4 in. SAE M access tee (2-pack included) F2010 - A2L adapter, 1/4 in. LH FPT x 1/4 in. MPT (1-pack included) A2L Compatible: Yes
