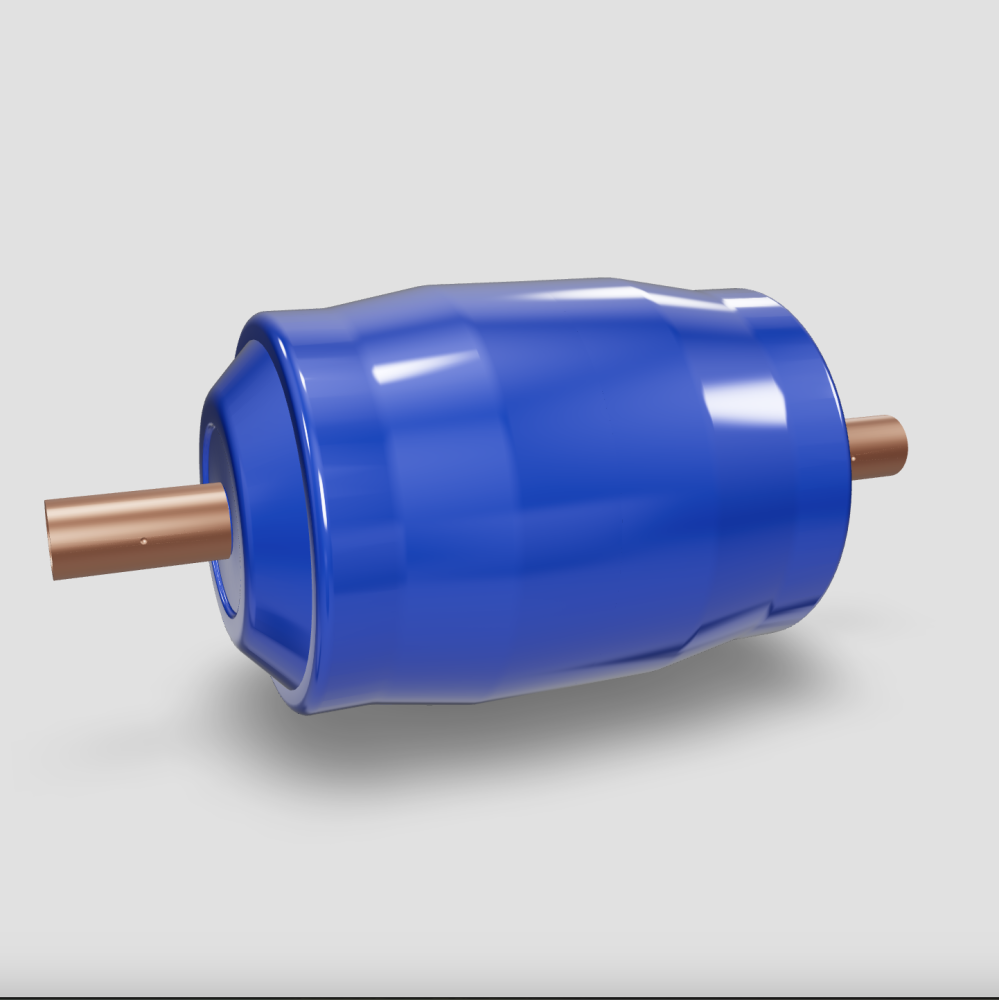

SDXB-163S Henry Filter/Drier, Bi-Flow 3/8" ODS

The function of a Bi-Flow Filter Drier is to capture and retain system contaminants and moisture in order to protect system components and prevent harmful acids formation in refrigerant systems requiring bi-directional flow.

Applications Henry Technologies’ Bi-Flow Filter Driers offer a high level of protection for refrigeration and air-conditioning systems. They are specifically designed to capture and retain moisture and solid particles from circulating throughout the system, which can create acid that causes damage to the compressor and other components piped within the circuit. Bi-flow filter driers are suitable for HCFC, HFC and CO₂ refrigerants including R-410A, and their 2 associated oils.

Main Features

• Solid copper ODS connections
• Solid core construction of 100% Molecular Sieve desiccant
• Increased drying capacity over 80% Molecular Sieve and 20% Activated Alumina and cores
• Solid particle filtration down to 150 microns
• Powder coat finish suitable for UV rays and harsh environments
• 1000 hour salt spray tested to ASTM B117

Technical Specifications

• Maximum working pressure = 650 PSI (45 Bar)
• Allowable operating temperature = -40°F to +212°F (-40°C to +100°C)
