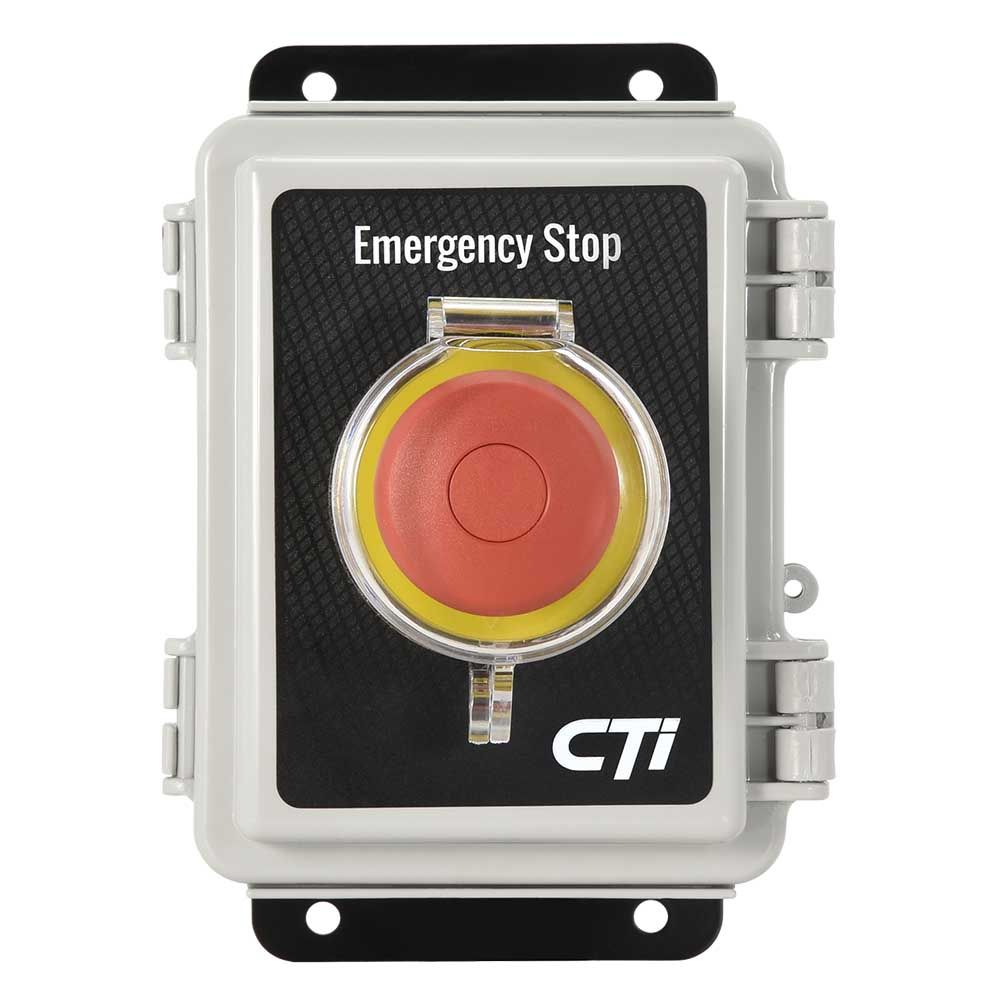

Emergency Stop pushbutton switchbox, tamper-proof flip-cover, NEMA 4 enclosure. 2 sets of NC contacts. NEMA 4X polycarbonate enclosure, with tamper-resistant switch cover.
Emergency pushbutton switches are an important part of any control system. They are ideal for protecting personnel and property, allowing the user to press the buttons for emergency stop/ventilation control, in addition to triggering the relays through the gas detection system. The Emergency-Stop, EmergencyVentilation and Emergency Pressure Control switches can be used with 24 VDC or 120 VAC, and have two sets of 1.5A contacts. The Tamper-proof flipcover meets most new codes, including IIAR-2 2014. The switches are housed in a durable NEMA 4 polycarbonate enclosure, able to withstand weather and washdown environments for indoor or outdoor mounting applications. Mounting flanges are also included for easy installation.
Features:
Weight | 2.000000 |
---|---|
Condition | New |
Manufacturer | Calibration Technologies (CTI) |
Actuator | Pull to release, mushroom 40mm |
Contact Rating | 10A, 120VAC or 24VDC |
Mounting Plate | Anodized aluminum |
Power | 120 VAC or 24VDC |
Operating Temperature | -40F to +120F |
