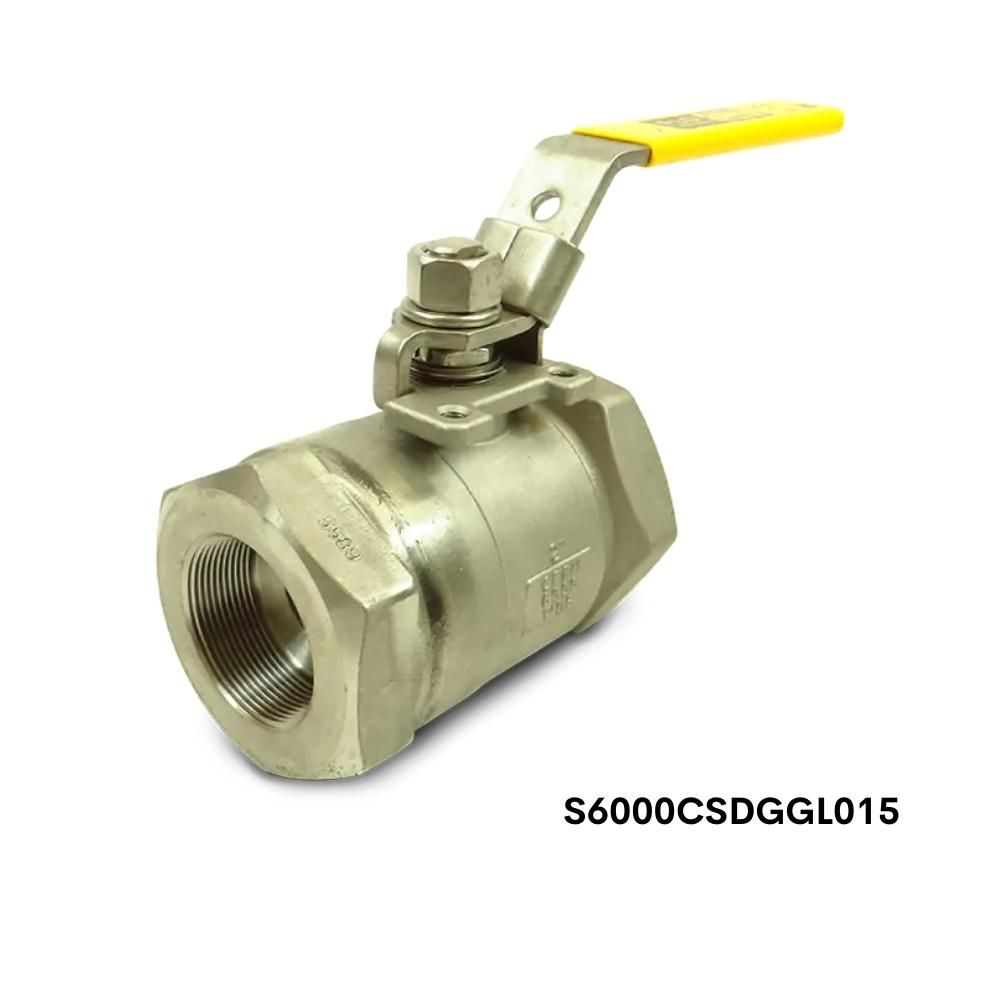

S6000-CS-DGG-L-015 Flo-Tite 1/2" Carbon Steel Threaded Ball Valve, FloTron-II Series S6000

Flo-Tite's Model S6000 valves are supplied as standard with graphite stem packing and body seal. Valves are certified fire safe. In the event of a fire, after heat destroys the primary resilient seat, the ball makes contact with the secondary metal seat, forming a secure seal. The graphite body seal prevents external leakage. The graphite live-loaded stem packing prevents stem leakage. All valves have anti-static devices as standard, grounding ball, and stem to body.

Design Features:

• Seal Welded Body
• Blowout-Proof Stem Design
• NACE MR0175
• Heavy Duty, Rugged Construction
• Live-Loaded Stem Packing
• Lockable Handles
• API 607-5 Fire Safe
• API 608 Compliance
• Anti-Static Ground Device
• Casting Traceability
• Actuator Mounting Pad

Seal Welded Design

Eliminates the possibility of body tail piece unthreading. Eliminates any possible leakage at body joints – safe, sure pressure containment. Automatic welding equipment is used for welding body joints. The welding width is always uniform and the weld penetration is consistent. During the seal welding process, our equipment maintains a consistent water flow inside the valve, assuring a safe temperature, which prevents damage to all valve seats and seals. Standard valve seating is Delrin.
