RS200-ACT Hansen Suitable for Ammonia or Halocarbon s

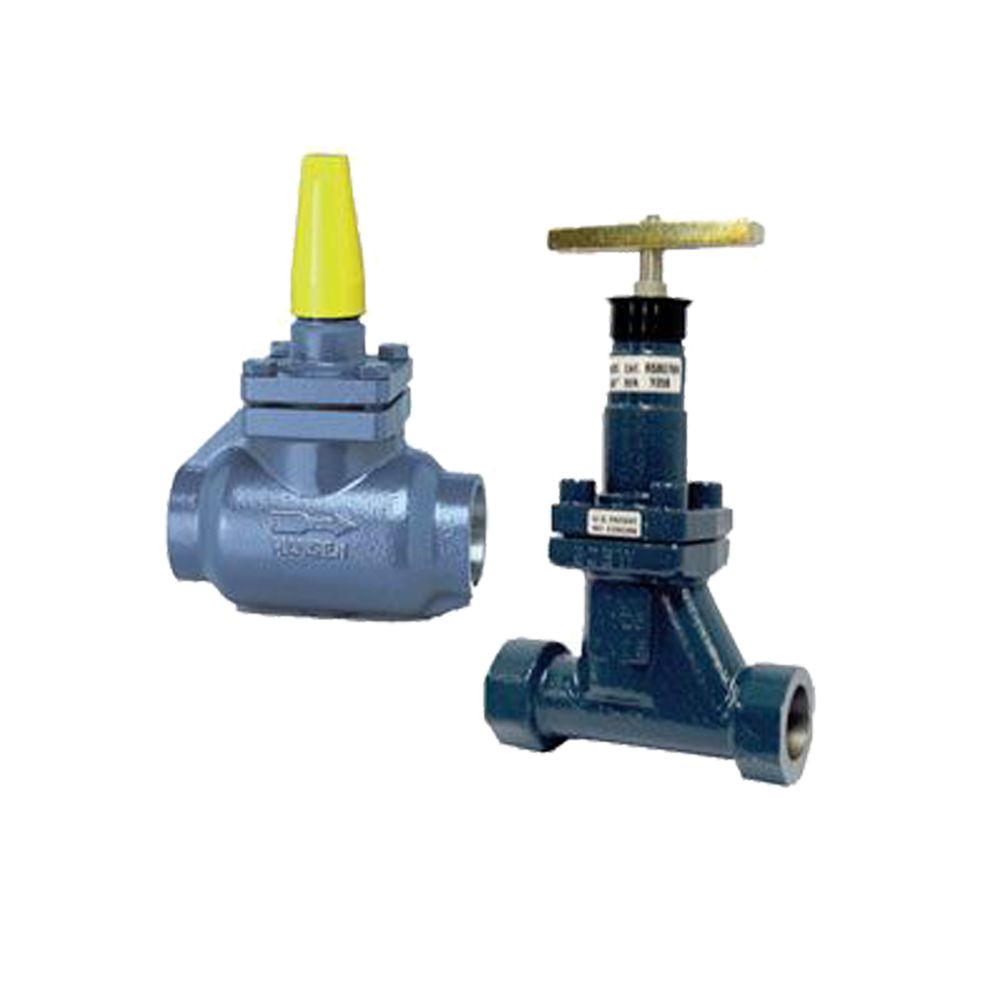

These precision-calibrated, adjustable, slotted plug flow regulating valves (hand expansion valves) are ideal for metering or flashing expansion of liquid refrigerants. Their slotted plugs are more tolerant of dirt particles than are common metal-seated tapered-plug expansion valves, and are less susceptible to wire drawing. Valves 2-1/2" (65 mm) and larger have a characterized plug. All valves have near linear flow characteristics per turn open and are tight closing with Teflon seats. These valves have stainless steel stems with back seating for seal replacement. The patented non-leak seal plus packing design permits low torque operation for valve adjustments since the packing nut requires little tightening. Bar handle or yellow seal caps distinguish them from shut-off valves. Suitable for ammonia or halocarbons.

Applications

• Liquid feed or circulating liquid overfeed evaporators
• High pressure or intermediate pressure liquid feed to accumulators, intercoolers, or recirculators
• Defrost condensate relief
• Hot gas feed to evaporators
• Equalize evaporator to suction pressure after defrost

Features:

• Bar Handle or Yellow Seal Cap
• Non-Leak Seal Plus Packing
• Ball Bearing Seat Swivel
• Tight Sealling Teflon Seat
• Polished Stainless Steel Stem
• Frost Shield
• Back Seating
• Anti-Spin O-ring
• Slotted Throtting Plug
