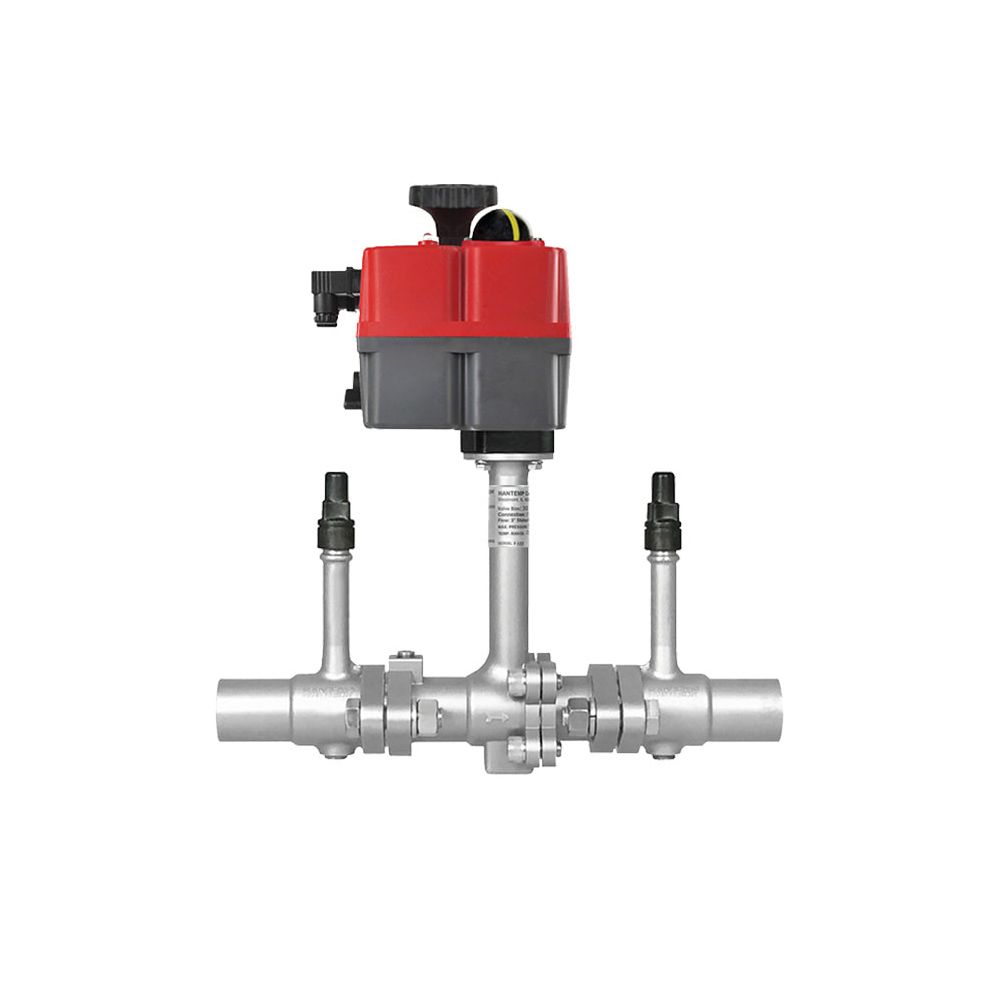

RR Hantemp Controls Stainless Steel Valve Stations

The HANTEMP RR Modular Valve Station is a new industrial refrigeration control using a platform concept to contain stainless steel control modules. These are easy to Install, to Repair, or to Remove. HANTEMP CBV (Controlled Ball Valves) Ball Valves, Modular Regulators and Solenoid Valves are factory assembled into simple packaged weld in-line assemblies with QSV Quarter-Turn Service Valves; ready for welding. Replace parts in situ, or remove control module for service.

FEATURES

• Modular design permits numerous application-specific configurations, and easy servicing
• Quarter-Turn Service Valves provide Isolation, Shut-Off and optional Expansion
• Rated for 800 psig SWP @-70°F
• Available for 3/4" to 1-1/4" pipe sizes? (1-1/2" to 2-1/2" coming late 2017)
• For ammonia, CO2, heat transfer fluids, and other approved refrigerants
