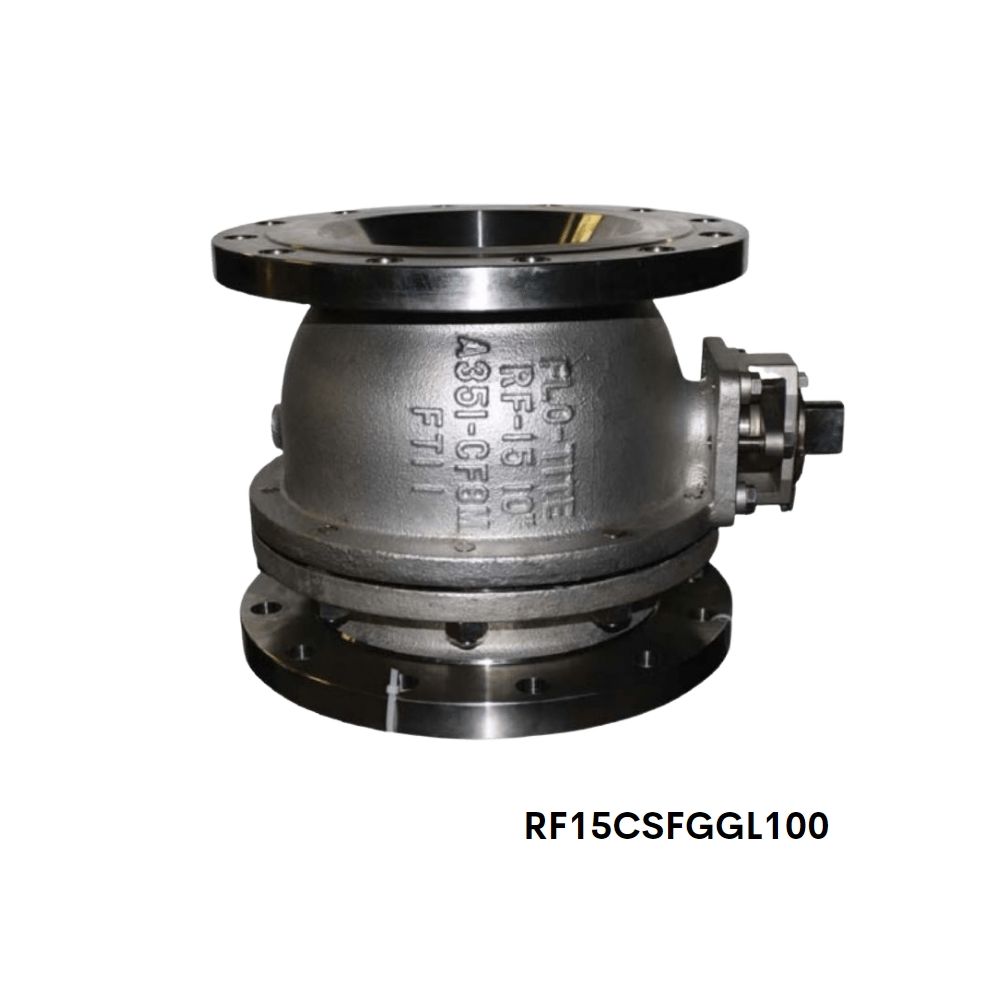

RF15-CS-FGG-L-100 Flo-Tite 4" Carbon Steel Flanged Ball Valves, EZ Series RF15

The Flo-Tite Flanged Series is designed as a split body, two-piece construction, to allow ease of access for maintenance of the valve ball and seat without special tools. This line of valves utilizes the "free floating" ball principle. The ball is not fixed but is free to move with the line pressure. As a result, these valves are capable of tight shut-off with the flow in either direction or dead-ended, regardless of the position of the valve in the line. The downstream seat, which is opposite the pressurized side, of a closed valve, must carry the load exerted by the line pressure on the ball, while the upstream seat is subject to little load or wear. For this reason, it is sometimes possible to increase useful seat life by turning the valve end-for-end in the pipeline.

Versatile Design Offers:

• Ease of Seat Replacement or Seat Change-Outs
• Ease of Maintenance
• Custom V-Port Control Options
• Improved Flow Control
• Lighter Weight than Full Port
• Lower Cost than Full Port
• Lower Operating Torques
• Fire Safe Design
• Comply with API & ANSI Standards
