QSV-100-BW Hantemp Controls 1" Size 100, Quarter-Turn Service Valve, Butt Weld

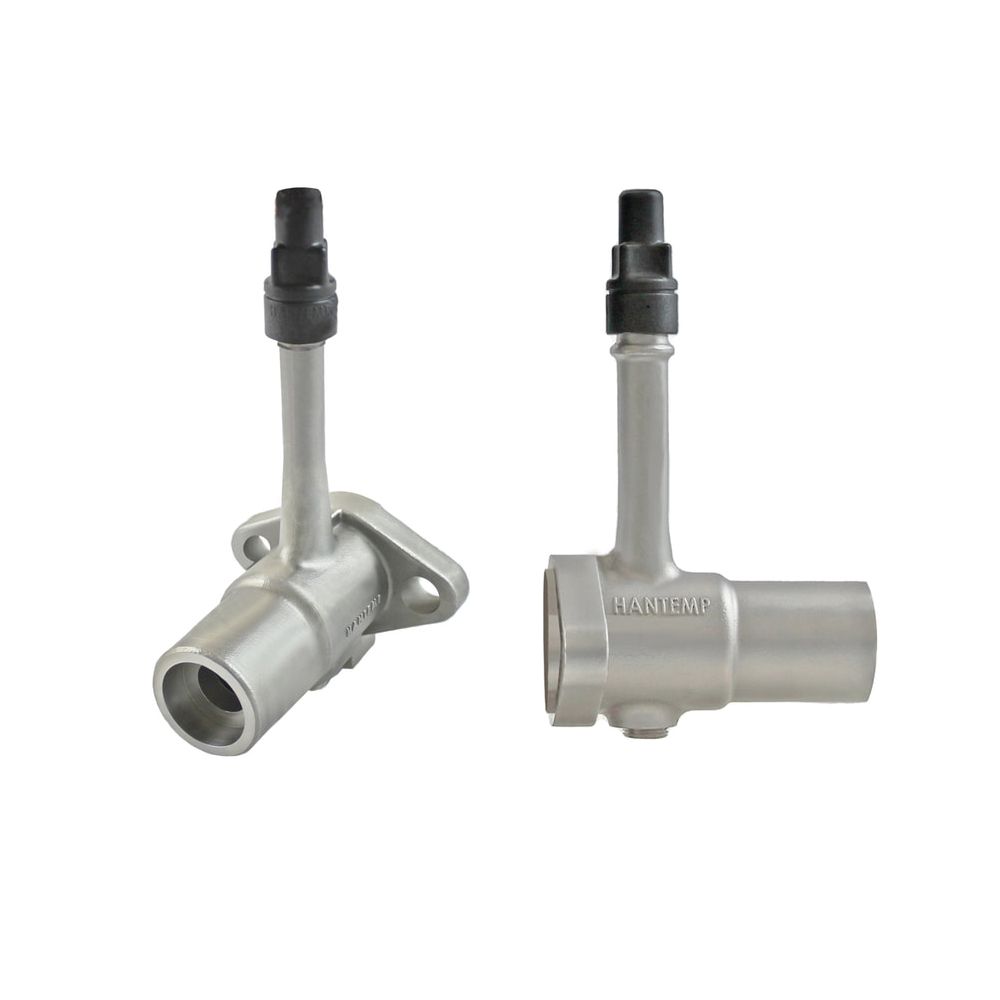

The HANTEMP Controls QSV is a compact, stainless steel ball valve that is flanged on one end and welded directly in-line on the other end. Applications include connection to flanged valves, service valve/union combination, and removable close coupling to valves.

FEATURES

• Acts as a flanged union with shut-off
• Column equalizing service valve suitable for accumulators, receivers, and other column isolation applications
• Open to close is positive quarter turn Slotted groove on one end is a heat break for easy weld installation C
• an be welded without being disassembled
• Optional stainless steel nuts, bolts, lock washers and gasket Supplied with a seal cap
• Rated for a 800 psig SWP
• 1/4'' gauge port for oil draining and pump outa
