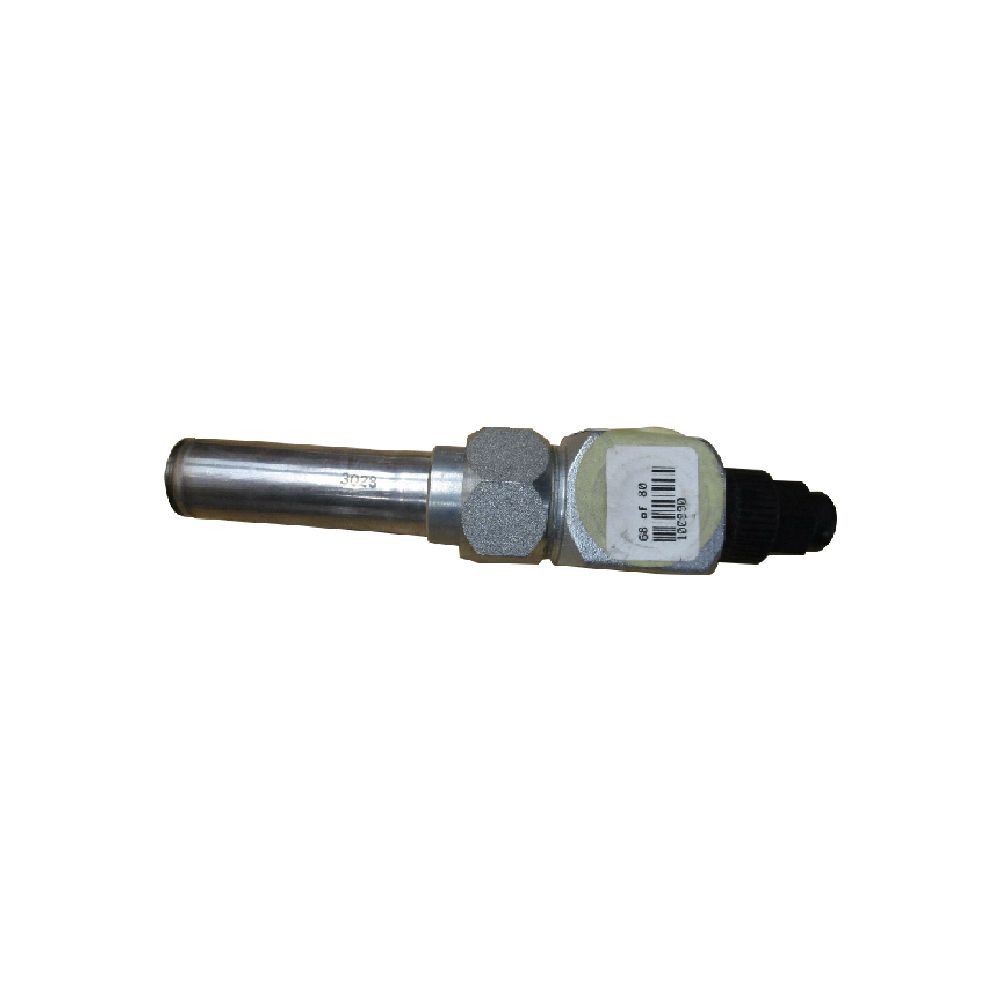

Parker - Refrigerating Specialties: 100990, SOL VLV,S6N

3/16" port size, 1/2" connection size: A solenoid valve is an electrically operated device used to control the flow of liquids or gases in a fully open or fully closed configuration. The S6N & S8F are normally closed solenoid valves to control the flow of refrigerant. Like all Refrigerating Specialties Solenoid Valves, these valves do not modulate. When electrically energized, they open wide; when de-energized, the valves close to stop flow in the normal direction. The S8F is direct acting; the valve needle is lifted and held open electrically by the solenoid coil. No pressure drop or flow is required to open or hold open this valve. Thus, the S6N Solenoid Valve is ideal for use as a pilot solenoid valve. The S8F is a pilot operated valve which features a higher flow capacity than the S6N. Both valves are available with ductile iron or stainless steel bodies.Features and Benefits:Standard Coil Housing Meets NEMA 3R and NEMA 4 - Rain TightCoil Housing Surpasses NEMA Salt Spray TestPlunger-Needle Assembly Same for S4A, S5A, S8F, S6APTFE Seat- S6N (Replaceable)Replaceable Piston Plug AssemblyMolded Class “F” Coil ConstructionSame Coil Fits All Refrigerating Specialties Solenoid ValvesPilot Light AvailableStainless Steel NeedleMRP 28 bar (400 psig)- S6N / S8FMOPD 20.7 (300 psig)- S6N / S8Application:Although too small for suction line applications in most cases, the S6N is often used as a pilot solenoid valve to actuate gas powered valves in suction linesAutomatic liquid flow stop to Thermal Expansion Valves, Float Valves, or Hand Expansion ValvesPurge Point Solenoids
