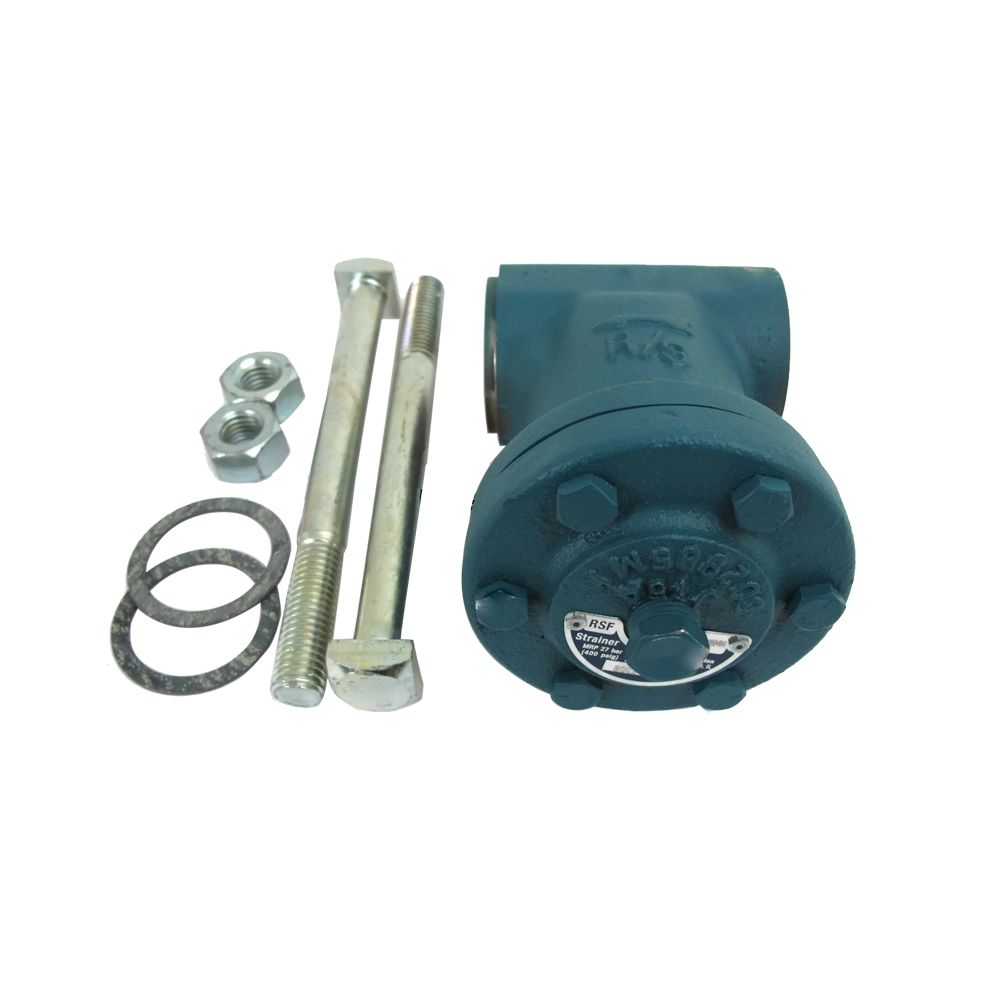

Parker - Refrigerating Specialties: 100007, STR,1 RSF 60 MESH

These industrial type Refrigerant Strainers with stainless steel screen are designed especially for the protection of R/S control valves from foreign materials present in refrigeration systems. The fine stainless screen mesh will collect particles as small as 0.006” in diameter. Generous available screen area allows maximum dirt capacity at minimum pressure drop. The strainers may be close coupled to R/S valves having the same flange gasket size.The RSF Refrigerant Strainer collect foreign materials and dirt in a refrigerant system at minimal pressure drop in order to minimize damage to or prevent malfunction of control valves. This, of course, is extremely important upon start-up of a new refrigeration system where dirt, scale, and weld particles may be present in the system and are disturbed and circulated when pressure testing or upon system start-up. Also when an existing system is revised, any settled dirt or foreign matter may be disturbed and circulated throughout the system. If particles are too small to be removed by the strainer, it is suggested that a R/S Filter Bag be installed where applicable, periodically cleaned and removed when necessary.Features:Stainless Steel (60 Mesh) ScreenDrain Connection for Safe Cleaning in LineAmple Screen AreLow Pressure DropDesign Pressure: 28 Bar (406 psig)Can be Close CoupledDurable Filter Bags Available 3/4" - 4" (20-100mm)Ductile Iron Bodied (GGG 40.3)Complies with Pressure Equipment Directive 97/23/EC
