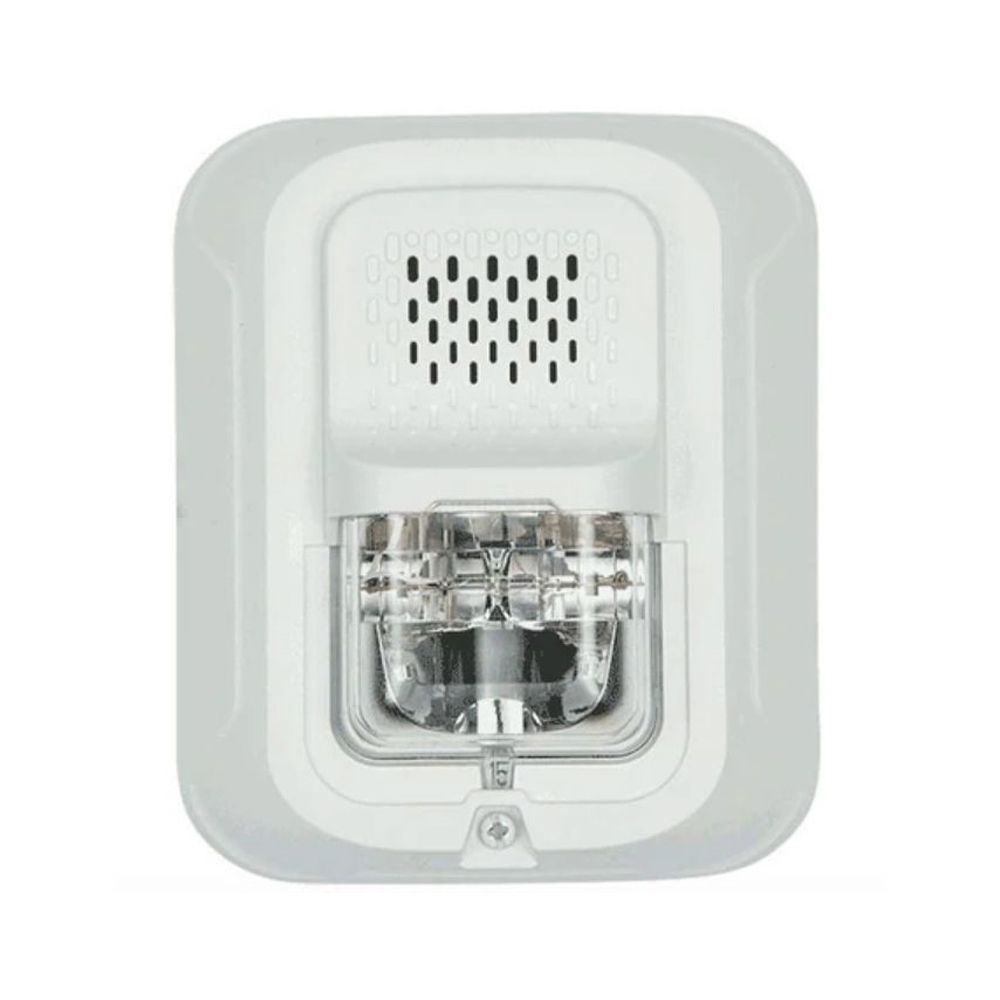

P4WL Honeywell Horn/Strobe 24 VDC, 4 Wire, Wall mount, Clear Lens; order with BZW-P (plain white bezel)

L-Series 2-wire horn strobes include a variety of features that increase their application versatility while simplifying installation. All devices feature plug-in designs with minimal intrusion into the backbox, making installations fast and foolproof while virtually eliminating costly and time-consuming ground faults.

To further simplify installation and protect devices from construction damage, these horn strobes utilize a universal mounting plate for all models with an onboard shorting spring, so installers can test wiring continuity before the device is installed. Installers can also easily adapt devices to suit a wide range of application requirements using field-selectable candela settings, automatic selection of 12 or 24V operation, and a rotary switch for horn tones with two volume selections.

Features & Benefits:

• Updated modern aesthetics
• Plug-in design with minimal intrusion into the backbox
• Tamper-resistant construction
• Automatic selection of 12 or 24V operation at 15 and 30 candela
• Field-selectable candela settings of 15, 30, 75, 95, 110, 135, and 185
• Horn rated at 88+ dBA at 16V
• Rotary switch for horn tone and two volume selections
• Mounting plate for all standard and all compact wall units
• Mounting plate shorting spring checks wiring continuity before device installation

Certifications:

• UL Listed: S4011; S5512
• ULC Listed: S4011; S5512
• FM Approved
• CSFM: 7125-1653:0504; 7135-1653:0503
