NX4V NAVAC NEXUS™ Digital Manifold Gauge Kit w/ Vacuum Gauge, 4-Valve, Bluetooth, A2L, myNAVAC™ App

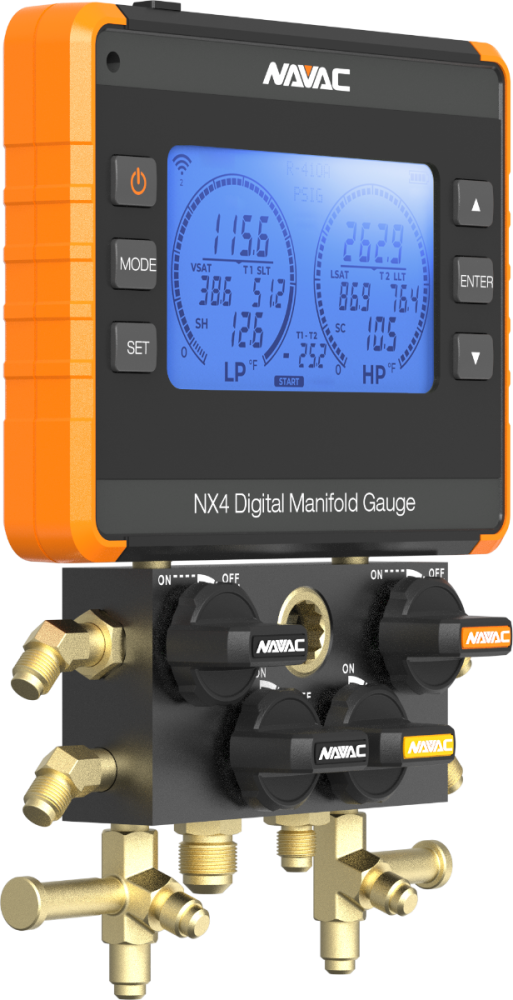

NAVAC NEXUS NX4V Digital Manifold Gauge Kit with NMV1S Micron Gauge
The NX4V is NAVAC's 4-valve NEXUS Digital Manifold Gauge bundled with the NMV1S premium micron vacuum gauge — a complete, connected diagnostics and evacuation kit for HVAC technicians. The 4-valve configuration adds a dedicated 3/8 in. vacuum port, allowing a single gauge setup to cover all common service tasks without hose shuffling.

Operating Modes
Manifold Gauge Mode, Leak Test Mode, Evacuation Mode, and Decay Test Mode. All accessible from the digital display without additional software on-site.

Connectivity
Bluetooth pairs NST1/NST2 clamps and the NMV1S micron gauge to the NX4 display at up to 260 ft. (80 m) line of sight. Compatible with myNAVAC App (Android 7.0+ / iOS 12.0+) for remote monitoring and firmware updates.

Technical Specifications
NX4 Gauge
- Pressure Range: -30 inHg to 720 psi
- Max Manifold Pressure: 1,087 psi (7,500 kPa)
- Ports: (1) 3/8 in. SAE vacuum; (3) 1/4 in. SAE for suction, liquid, and recovery/charging
- Accuracy Class: 0.4
- Power: Rechargeable 3,000 mAh lithium battery, USB-C
- Bluetooth Range: up to 260 ft. (80 m) line of sight
- Body: Aluminum with 1/4-turn ball valves
- A2L Compatible: Yes

NMV1S Micron Gauge
- Wireless micron vacuum gauge
- Connects to NX4 display via Bluetooth
- Displays live micron readings during evacuation

Included Accessories
- NST1 low-side Bluetooth temperature clamp
- NST2 high-side Bluetooth temperature clamp
- NMV1S premium micron vacuum gauge
- Charging cable
- Carry case
