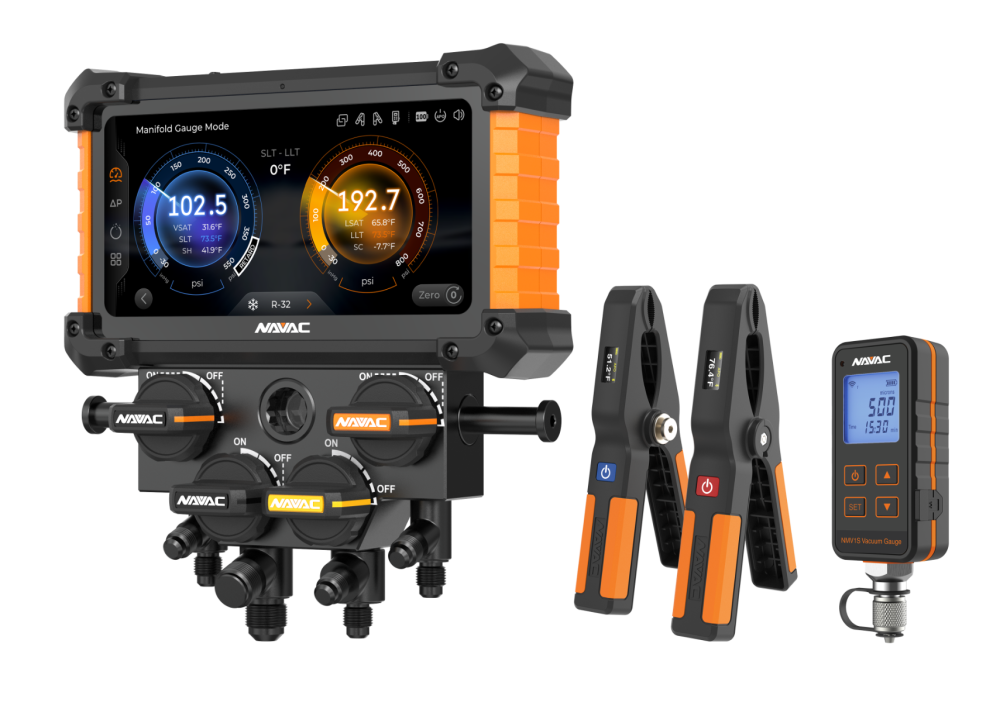

NX4GV NAVAC NEXUS™ 2 Digital Manifold Gauge Kit w/ Vacuum Gauge, 4-Valve, Bluetooth, A2L, myNAVAC™ App

NAVAC NEXUS 2 NX4GV 4-Valve Digital Manifold Gauge Kit with NMV1S Micron Gauge
The NX4GV bundles the 4-valve NEXUS 2 Digital Manifold Gauge with the NMV1S premium micron vacuum gauge — covering manifold diagnostics, leak testing, and deep vacuum evacuation monitoring in a single purchase. The IPS HD color touchscreen (1,024 x 512 pixels) is a full generational upgrade from the original NEXUS.

Display and Interface
IPS touchscreen at 1,024 x 512 pixels with four UI themes: Classic, Galaxy, USA, and Daylight Mode. Manifold Gauge Mode, Leak Test Mode, and Evacuation Mode with Decay Test. Aviation-inspired UI for faster field workflows.

Connectivity and App Integration
Bluetooth pairs NST1/NST2 clamps and NMV1S micron gauge to the NX4G at up to 260 ft. (80 m) line of sight. Compatible with myNAVAC App and MeasureQuick App on Android 7.0+ or iOS 12.0+. Firmware updatable for future refrigerant additions.

Technical Specifications
NX4G Gauge
- Screen: IPS touchscreen, 1,024 x 512 pixels
- Ports: (1) 1/4 in. SAE for evacuation; (3) 1/4 in. SAE for suction, liquid, and recovery/charging
- Max Manifold Pressure: 1,087 psi (7,500 kPa)
- Accuracy Class: 0.4
- Refrigerants Supported: 100 (firmware updatable)
- Bluetooth Range: up to 260 ft. (80 m) line of sight
- Power: Rechargeable 3,000 mAh lithium battery, 8 to 100 hours run time, Type-C
- Languages: English, Spanish, French
- A2L Compatible: Yes

NMV1S Micron Gauge
- Wireless micron vacuum gauge
- Connects to NX4G display via Bluetooth
- Displays live micron readings during evacuation

Included Accessories
- NST1 low-side Bluetooth temperature clamp
- NST2 high-side Bluetooth temperature clamp
- NMV1S premium micron vacuum gauge
- Storage bag
- Charging cable
