NX4G NAVAC NEXUS™ 2 Digital Manifold Gauge, 4-Valve, Bluetooth, A2L, myNAVAC™ App
NEXUS™ 2 Digital Manifold Gauge, 4-Valve, Bluetooth, A2L, myNAVAC™ App
Web Price
$685.00
List Price
$959.00
List Price
$959.00
Unlock pro savings, tools, exclusive offers, and more.
Create a FREE Account
Details

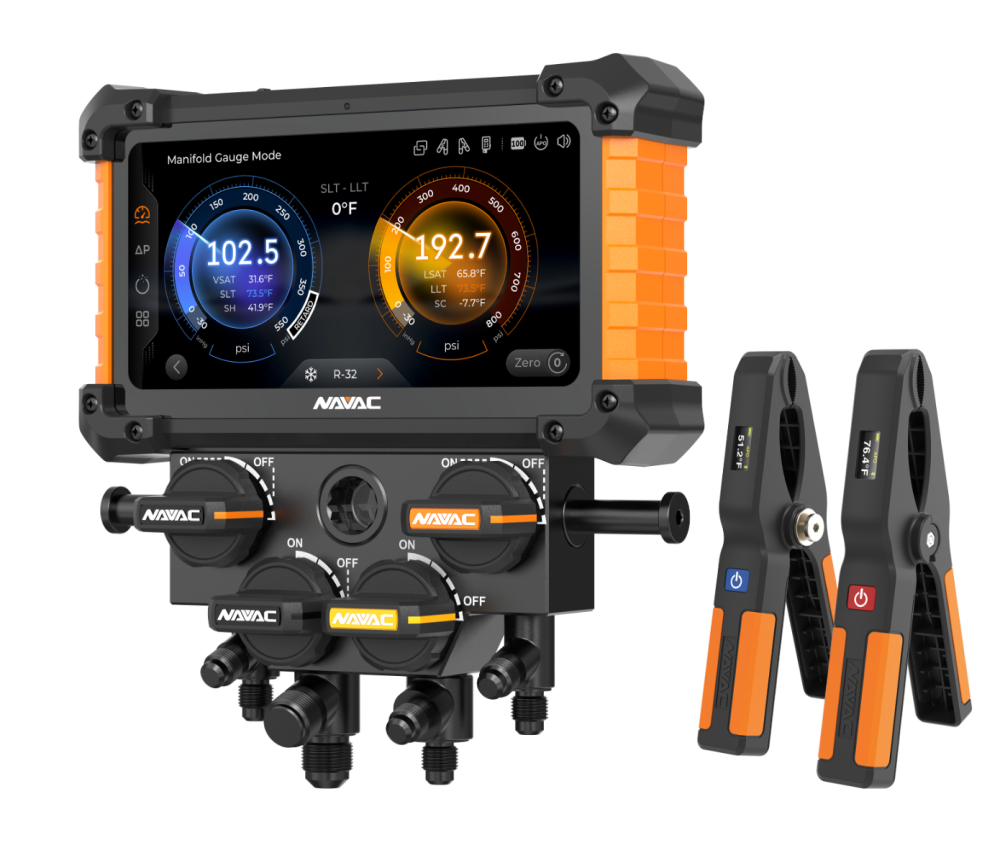

NAVAC NEXUS 2 NX4G 4-Valve Digital Manifold Gauge
The NX4G is NAVAC's 4-valve NEXUS 2 Digital Manifold Gauge — a full generational upgrade over the original NEXUS platform. The IPS HD color touchscreen, heavy-duty protective shell, swivel hose ports, and expanded refrigerant library make it the most capable manifold gauge in the NAVAC lineup without the micron gauge bundle.
Operating Modes and Interface
Manifold Gauge Mode, Leak Test Mode, and Evacuation Mode with Decay Test. Four display themes including Daylight Mode. IPS touchscreen at 1,024 x 512 pixels. Aviation-inspired UI designed for field efficiency.
Connectivity and App Integration
Bluetooth pairs NST1/NST2 temperature clamps (included) and compatible NAVAC micron gauges at up to 260 ft. (80 m) line of sight. Compatible with myNAVAC App and MeasureQuick App on Android 7.0+ or iOS 12.0+. Firmware updatable via app or NAVAC website.
Technical Specifications
Screen: IPS touchscreen, 1,024 x 512 pixels
Ports: (1) 1/4 in. SAE for evacuation; (3) 1/4 in. SAE for suction, liquid, and recovery/charging
Max Manifold Pressure: 1,087 psi (7,500 kPa)
Accuracy Class: 0.4
Refrigerants Supported: 100
Bluetooth Range: up to 260 ft. (80 m) line of sight
Power: Rechargeable 3,000 mAh lithium battery, 8 to 100 hours run time, Type-C
Languages: English, Spanish, French
Included: NST1 and NST2 temperature clamps, storage bag, charging cable
Warranty: 2 years
A2L Compatible: Yes
More Information
| Weight | 6.830000 |
|---|---|
| Condition | New |
| Brand | NAVAC |
| Width | 6.3 |
| Height | 11.81 |
| Length | 9.72 |
