NX1GV NAVAC NEXUS™ 2 Digital Manifold Gauge Kit w/ Vacuum Gauge, Bluetooth, A2L, myNAVAC™ App

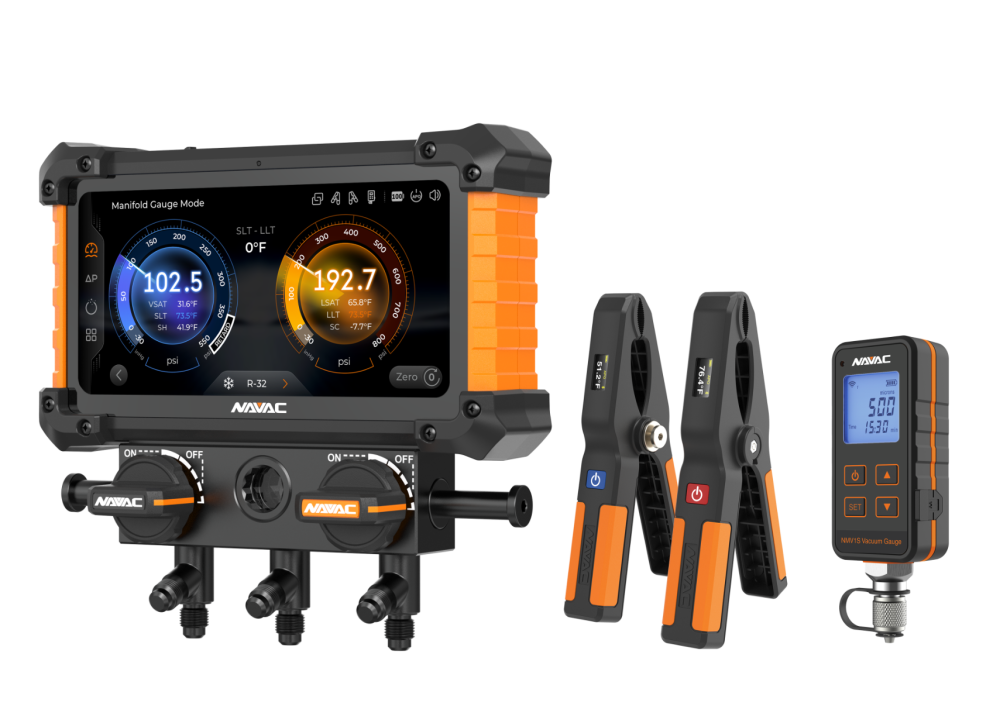

NAVAC NEXUS 2 NX1GV Digital Manifold Gauge Kit with NMV1S Micron Gauge
The NX1GV is the latest-generation NEXUS 2 Digital Manifold Gauge bundled with the NMV1S premium micron vacuum gauge. The NEXUS 2 platform is a full generational upgrade from the original NEXUS — replacing the standard display with an IPS HD color touchscreen, adding a heavy-duty protective shell, and expanding refrigerant coverage to 100 supported blends.

Display and Interface
IPS touchscreen at 1,024 x 512 pixels with four UI themes: Classic, Galaxy, USA, and Daylight Mode (for direct sun visibility). Manifold Gauge Mode, Leak Test Mode, and Evacuation Mode with Decay Test are accessible directly from the touchscreen.

Connectivity and App Integration
Bluetooth pairs NST1/NST2 temperature clamps and the NMV1S micron gauge to the NX1G at up to 260 ft. (80 m) line of sight. Compatible with myNAVAC App and MeasureQuick App on Android 7.0+ or iOS 12.0+. Firmware updatable via app or NAVAC website for future refrigerant additions.

Technical Specifications
NX1G Gauge
- Screen: IPS touchscreen, 1,024 x 512 pixels
- Ports: (3) 1/4 in. SAE
- Max Manifold Pressure: 1,087 psi (7,500 kPa)
- Accuracy Class: 0.4
- Refrigerants Supported: 100 (firmware updatable)
- Bluetooth Range: up to 260 ft. (80 m) line of sight
- Power: Rechargeable 3,000 mAh lithium battery, 8 to 100 hours run time, Type-C
- Languages: English, Spanish, French
- A2L Compatible: Yes

NMV1S Micron Gauge
- Wireless micron vacuum gauge
- Connects to NX1G display via Bluetooth
- Displays live micron readings during evacuation

Included Accessories
- NST1 low-side Bluetooth temperature clamp
- NST2 high-side Bluetooth temperature clamp
- NMV1S premium micron vacuum gauge
- Carry case
- Charging cable
