NAVAC SK3TPH1 Smart Refrigerant & Air Side Diagnostics Kit

NAVAC SK3TPH1 Smart Refrigerant and Air Side Diagnostics Kit
The SK3TPH1 is NAVAC's all-in-one wireless diagnostics solution for HVACR professionals who need full refrigerant-side and air-side system data without juggling multiple standalone tools. This kit pairs Bluetooth temperature clamps, pressure probes, and psychrometers with F1030 access tee connectors — all in a single bundle built around the myNAVAC App ecosystem.

What's in the Kit

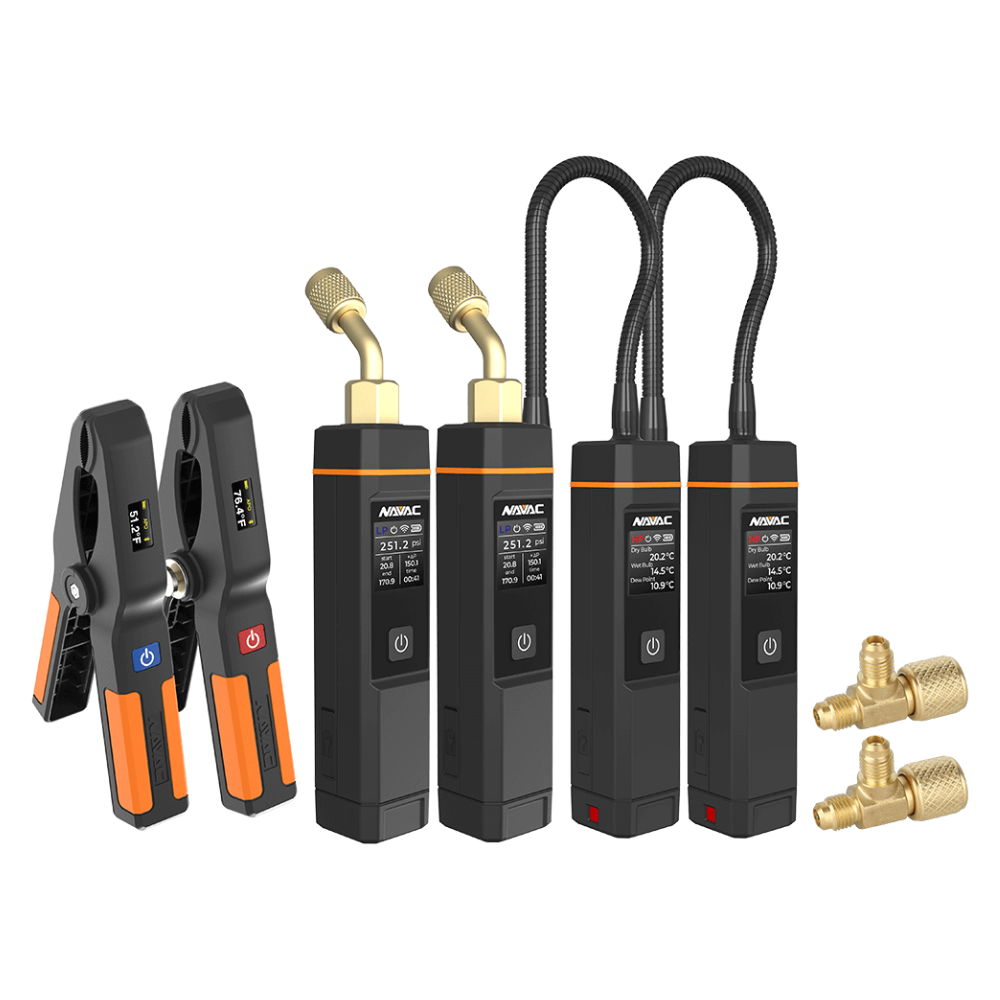

The SK3TPH1 includes two NST1 low-side and NST2 high-side Bluetooth temperature clamps with high-accuracy thermistor sensors, two NSP1 Bluetooth pressure probes delivering automatic VSAT/LSAT calculations, two NSH1 Bluetooth psychrometers for detailed air-side temperature and humidity data, and two F1030 1/4 in. SAE access tee connectors.

Probe Features and Display
The NSP1 pressure probes and NSH1 psychrometers each include a built-in digital display for standalone operation — no phone required. NST1/NST2 clamps feature TFT displays and accept tube OD up to 1-5/8 in. (42 mm). All probes include auto power-off and rechargeable or battery-powered options for field use. IP54 rating on the temperature clamps protects against dust and water ingress.

Connectivity
All probes connect via Bluetooth 4.0 or above to the myNAVAC App (Android 7.0+ or Apple iOS 12.0+) and MeasureQuick App. Temperature clamps reach up to 450 ft. (150 m) line of sight; pressure probes and psychrometers reach up to 164 ft. (50 m). NSP1 and NSH1 are USB-C rechargeable with 1,200 mAh batteries rated over 200 hours screen-off / over 40 hours screen-on. NST1/NST2 run on 2x AAA batteries with up to 150 hours battery life.

Technical Specifications
NST1/NST2
-Temp Range: -40°F to 257°F (-40°C to 125°C)
- Accuracy: plus or minus 2.3°F (plus or minus 1.3°C)
- Max Tube OD: 1-5/8 in. (42 mm)
- Bluetooth Range: up to 450 ft. (150 m)
- IP Rating: IP54

NSP1
- Pressure Range: -29 inHg to 725 psi
-  Max Overload Pressure: 1,087 psi (7,500 kPa)
- Accuracy: plus or minus 0.5% of full range
- Resolution: 0.01 psi
- Bluetooth Range: up to 164 ft. (50 m)
- Battery: 1,200 mAh rechargeable lithium, USB-C

NSH1
- Temp Range: -40°F to 249.8°F
- Humidity Range: 0 to 100% RH
- Humidity Accuracy: plus or minus 2.0% RH (10 to 90% RH at 77°F)
- Bluetooth Range: up to 164 ft. (50 m)
- Battery: 1,200 mAh rechargeable lithium, USB-C

F1030
- 1/4 in. SAE M x 1/4 in. SAE FE x 1/4 in. SAE M access tee (2-pack included)

Warranty: 1 year
A2L Compatible: Yes (R-32, R-454B, and others)
