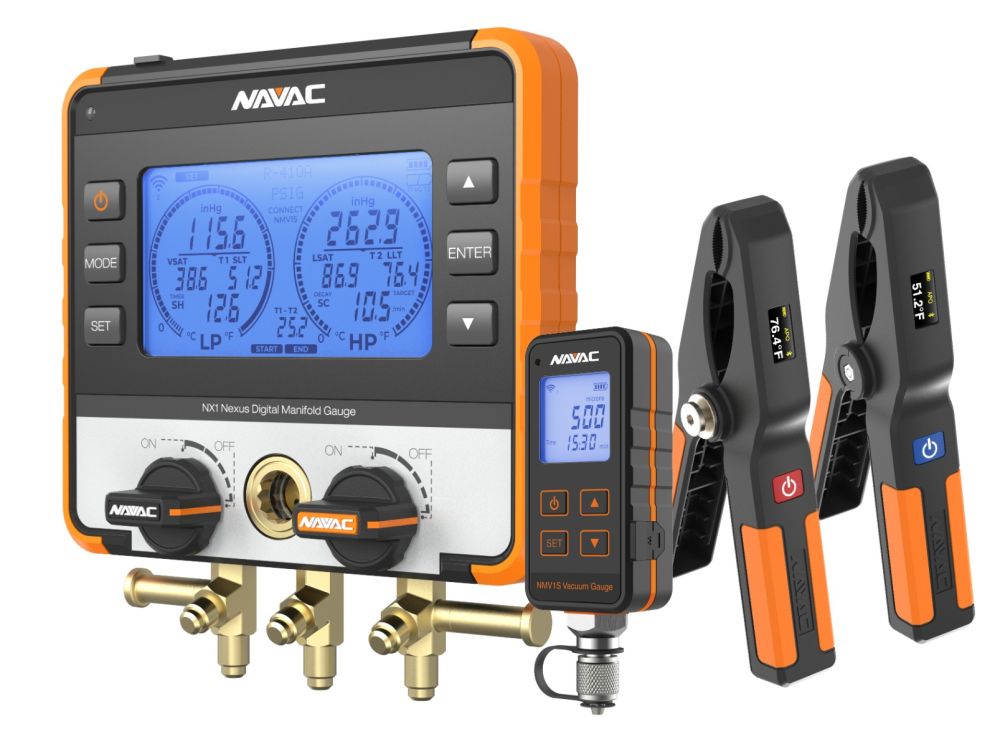

NAVAC NX1V Nexus Digital Manifold Gauge Kit w/ Micron Gauge, Bluetooth-Enabled

NAVAC NEXUS Digital Manifold Gauge NX1V — Kit with NMV1S Micron Gauge
The NX1V is the NX1 NEXUS Digital Manifold Gauge bundled with the NMV1S premium micron vacuum gauge. Everything in the NX1 kit plus wireless evacuation monitoring — all in one purchase.

Operating Modes
Manifold Gauge Mode, Leak Test Mode, Evacuation Mode, and Decay Test Mode. All accessible from the digital display without additional software on-site. The NMV1S connects to the NX1V via Bluetooth and displays live micron readings on the gauge screen during evacuation.

Connectivity and App Integration
Bluetooth pairs with NST1/NST2 temperature clamps and the NMV1S micron gauge at up to 260 ft. (80 m) line of sight. Compatible with myNAVAC App (Android 7.0+ / iOS 12.0+) for remote monitoring and firmware updates.

Refrigerant Compatibility
Supports a broad refrigerant list including R-22, R-134a, R-410A, R-454B, R-32, R-1234yf, R-290, R-744 (max 600 psi), and many more. Firmware updatable for future refrigerant additions.

Technical Specifications
NX1 Gauge
- Pressure Range: -30 inHg to 720 psi
- Accuracy Class: 0.4
- Power: Rechargeable 3,000 mAh lithium battery, USB-C
- Bluetooth Range: up to 260 ft. (80 m) line of sight
- Body: Aluminum with 1/4-turn ball valve
- A2L Compatible: Yes

NMV1S Micron Gauge
- Wireless micron vacuum gauge
- Connects to NX1 display via Bluetooth
- Displays live micron readings during evacuation

Included Accessories
- NST1 low-side Bluetooth temperature clamp
- NST2 high-side Bluetooth temperature clamp
- NMV1S premium micron vacuum gauge
- Charging cable
- Carry case
