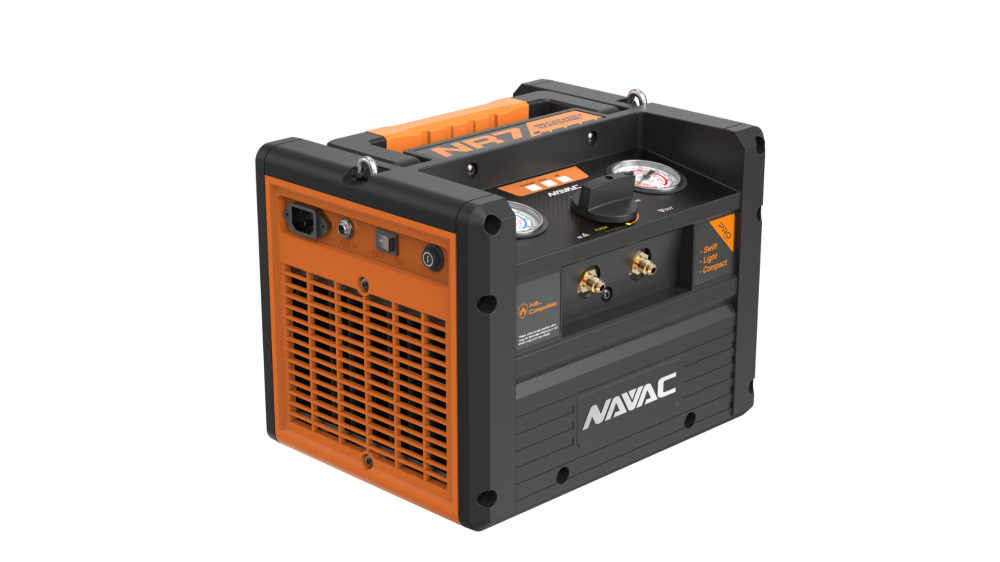

NAVAC NR7 Recovery Unit, Dual-Cylinder, DC. Pro Series

NAVAC NR7 Refrigerant Recovery Unit The NR7 is NAVAC's compact, dual-cylinder recovery unit built for speed, portability, and A2L compatibility. Designed for HVAC technicians who recover refrigerant daily, the NR7 delivers high liquid recovery rates in a lightweight chassis — without sacrificing reliability or safety certifications. Performance and Motor The NR7 runs a brushless DC motor at 1 HP through an oil-free, air-cooled twin-cylinder piston compressor. Direct vapor recovery delivers 0.54 lbs/min on R-410A, 0.58 lbs/min on R-22, and 0.47 lbs/min on R-134a. Direct liquid recovery reaches 12 lbs/min on R-410A, 9 lbs/min on R-22, and 8 lbs/min on R-134a. Push/pull liquid recovery reaches 17 lbs/min on R-410A, 15.8 lbs/min on R-22, and 15 lbs/min on R-134a. A three-row large condenser with extra-dense fins manages heat dissipation during extended operations. Refrigerant Compatibility Category III: R-12, R-134a, R-1234yf, R-401C, R-500 Category IV: R-22, R-401A, R-401B, R-402B, R-407C, R-407D, R-408A, R-409A, R-502, R-509 Category V: R-32, R-402A, R-404A, R-407A, R-407B, R-410A, R-454B, R-507 The built-in purge function eliminates cross-contamination between refrigerant types. Safety and Certifications CSA certified. Automatic safety shut-off at 558 psi (38.5 bar). Built-in protection for full-tank, overload, and high-pressure conditions. One-key operation. Technical Specifications Power Supply: 115V / 60Hz Motor: 1 HP Max Current Draw: 12.5 A Compressor: Oil-less, air-cooled, piston style Automatic Safety Shut-Off: 558 psi (38.5 bar) Direct Vapor Recovery (R-410A): 0.54 lbs/min (0.25 kg/min) Direct Liquid Recovery (R-410A): 12 lbs/min (5.5 kg/min) Push/Pull Liquid Recovery (R-410A): 17 lbs/min (7.8 kg/min) Dimensions: 12.2 x 9.4 x 9.6 in. Weight: 20.3 lbs Certification: CSA Warranty: 1 year
