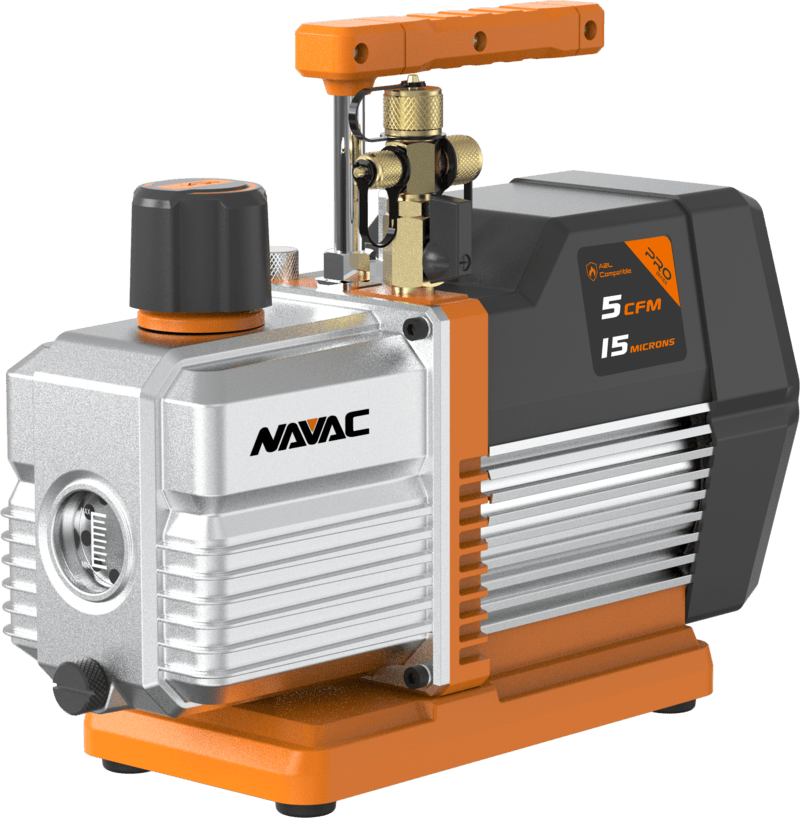

NAVAC NP5DP2 Vacuum Pump, 5 CFM, 2-Stage, 15 Microns, A2L. Pro Series

NAVAC NP5DP2 is an A2L compatible vacuum pump with expanded applications. Its dual-stage design delivers an ultimate vacuum down to 15 microns with unmatched reliability. Integrated cylinder structure coupled with forced oil circulation assures its high performance and reliability. The built-in hook makes it easy to carry to a high workplace.

Model: NP5DP2
Power Supply (V/Hz): 115V / 60Hz
Flow Rate (CFM): 5
Run Load Amps (A): 3.8
Ultimate Vacuum (micron): 15
Pump Design: Dual-Stage, AC Motor
Motor Power (HP): 3/4
Inlet Port (in): 1/4", 3/8", 1/2" Flare
Oil Capacity (oz): 17
Dimensions (in): 14 × 5 × 11.3
Weight (LB): 24.3
