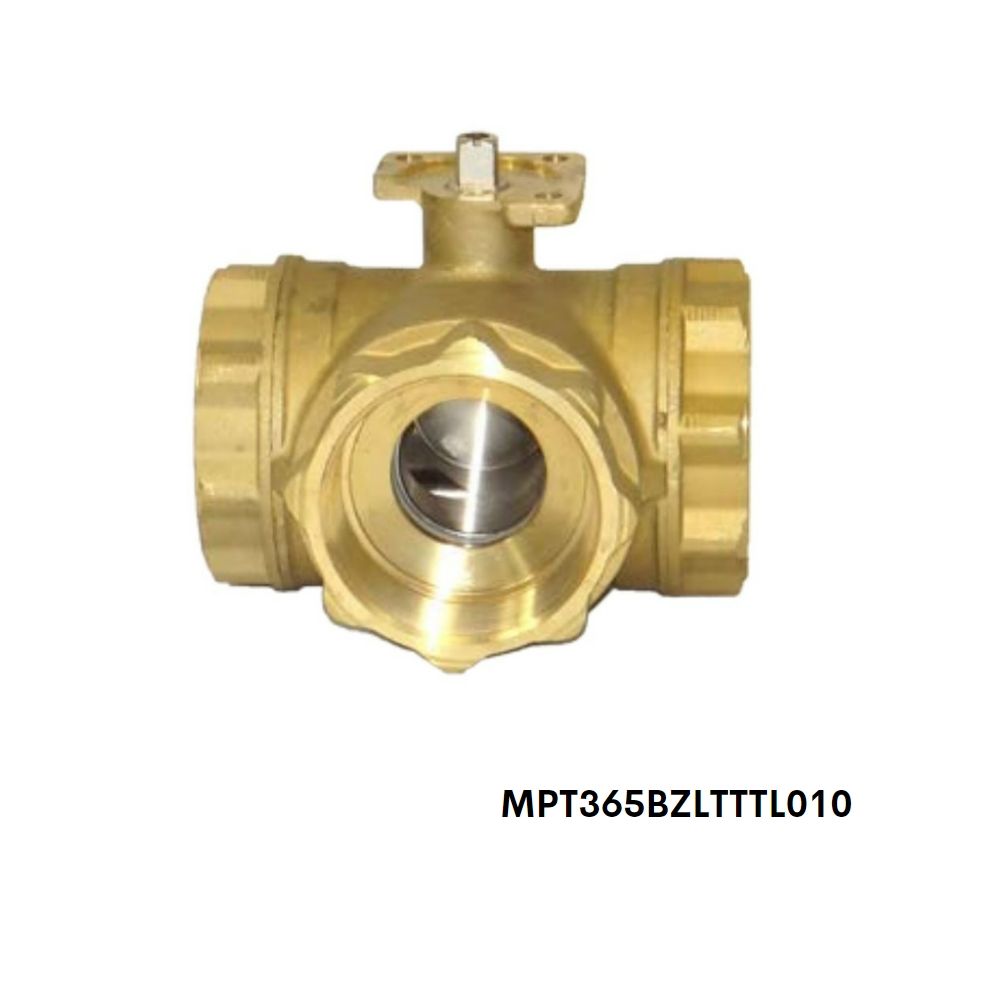

MPT365-BZ-L-TTT-L-010 Flo-Tite 3/8 Plated Brass Multi-Port Ball Valves, MPT 355/365

The Flo-Tite MPT 355 / 365 is designed as a split body, two-piece construction, to allow ease of access for maintenance of the valve ball and seat without special tools. This line of valves utilizes the "free-floating" ball principle. The ball is not fixed but is free to move with the line pressure. As a result, these valves are capable of tight shut-off with the flow in either direction or dead-ended, regardless of the position of the valve in the line. The downstream seat, which is opposite the pressurized side, of a closed valve, must carry the load exerted by the line pressure on the ball, while the upstream seat is subject to little load or wear. For this reason, it is sometimes possible to increase useful seat life by turning the valve end-for-end in the pipeline.Features:Four Seat Design in both T & Diverter Types allows for an off PositionPressure Rating: 400 MAWP/WOG/100 WSPPTFE Double O - Ring Stem SealActuator Mounting Pad complies to ISO 5211 bolting pattern, Direct MountForged Brass BodyChrome Plated Brass Ball
