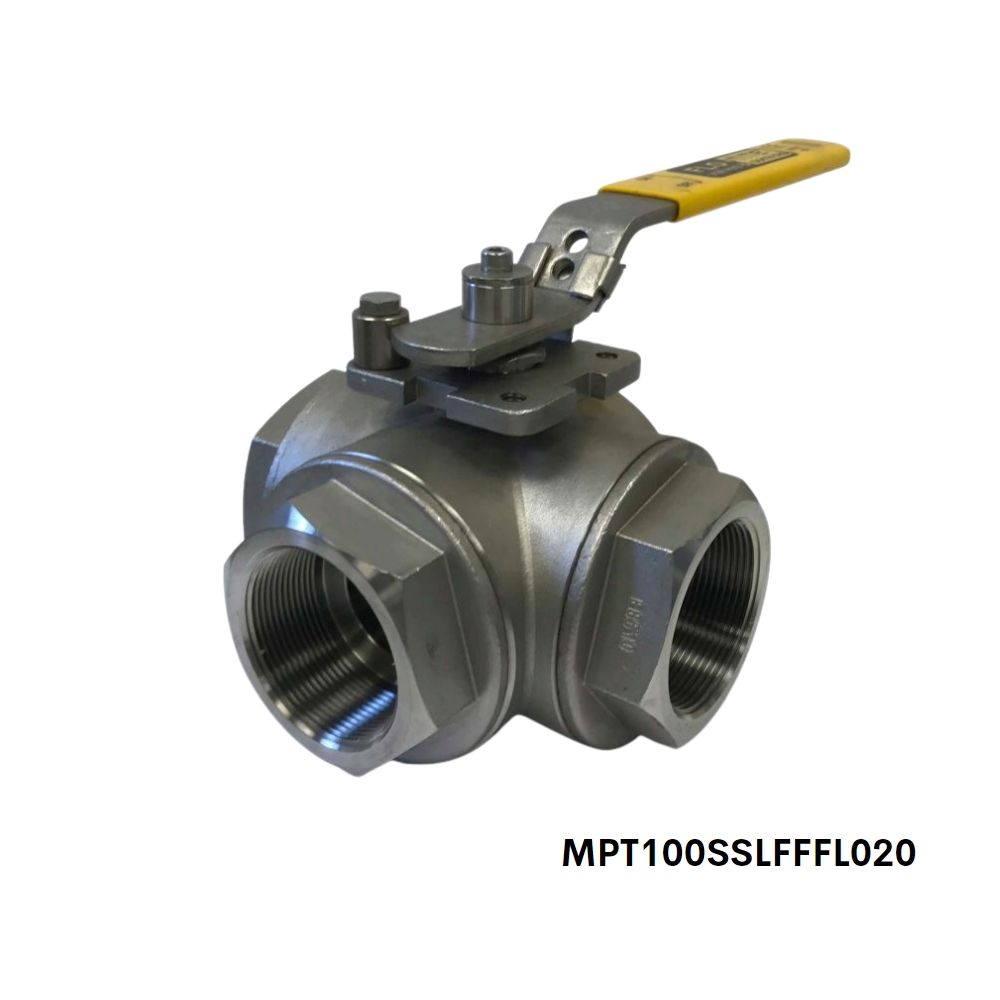

MPT100-SS-L-FFF-L-020 Flo-Tite 3/4" Stainless Steel Multi-port Ball Valves, 3 & 4 Way Multi-Port Ball Valves MPT100/104

The Flo-Tite MPT100SS is designed as a split body, to allow ease of access for maintenance of the valve ball and seat without special tools. This line of valves utilizes the "free-floating" ball principle. The ball is not fixed but is free to move with the line pressure. As a result, these valves are capable of tight shut-off with the flow in either direction or dead-ended, regardless of the position of the valve in the line. The downstream seat, which is opposite the pressurized side, of a closed valve, must carry the load exerted by the line pressure on the ball, while the upstream seat is subject to little load or wear. For this reason, it is sometimes possible to increase useful seat life by turning the valve end-for-end in the pipeline.

Features:

• Size Range: 1/4" - 2"
• Pressure Rating:800 MAWP/WOG
• Temperature Range: Consult Factory
• Locking Handle, Locks At 90°Intervals, Full 360° (for MPT100 only)
• Quality Investment Cast Components
• All Stainless Steel Construction
• Optional Anti-Static Grounding Device
• Threaded Ends
• Optional Tri-Clamp And Flanged Ends
• I-SO Actuator Mounting
• Locking Handle Standard On All Valves
• All Valve Solutions Annealed
• All Valves have four seats which allows operation in the Off Position.

Specifications:

• Body Test Pressure: 1200 PSIG Hydrostatic
• Pressure Rating: 800 WOG
• Threaded End Connections Meet ANSI B1.20.1
  • Our Unique new handle design has position stops in 90° increments for full 360° operation (for MPT100 only).
  • A wide variety of special seat materials are available C/F.
  • Valves Stem Seals and Seats 100% tested by 100 psig air underwater for bubble-tight integrity
