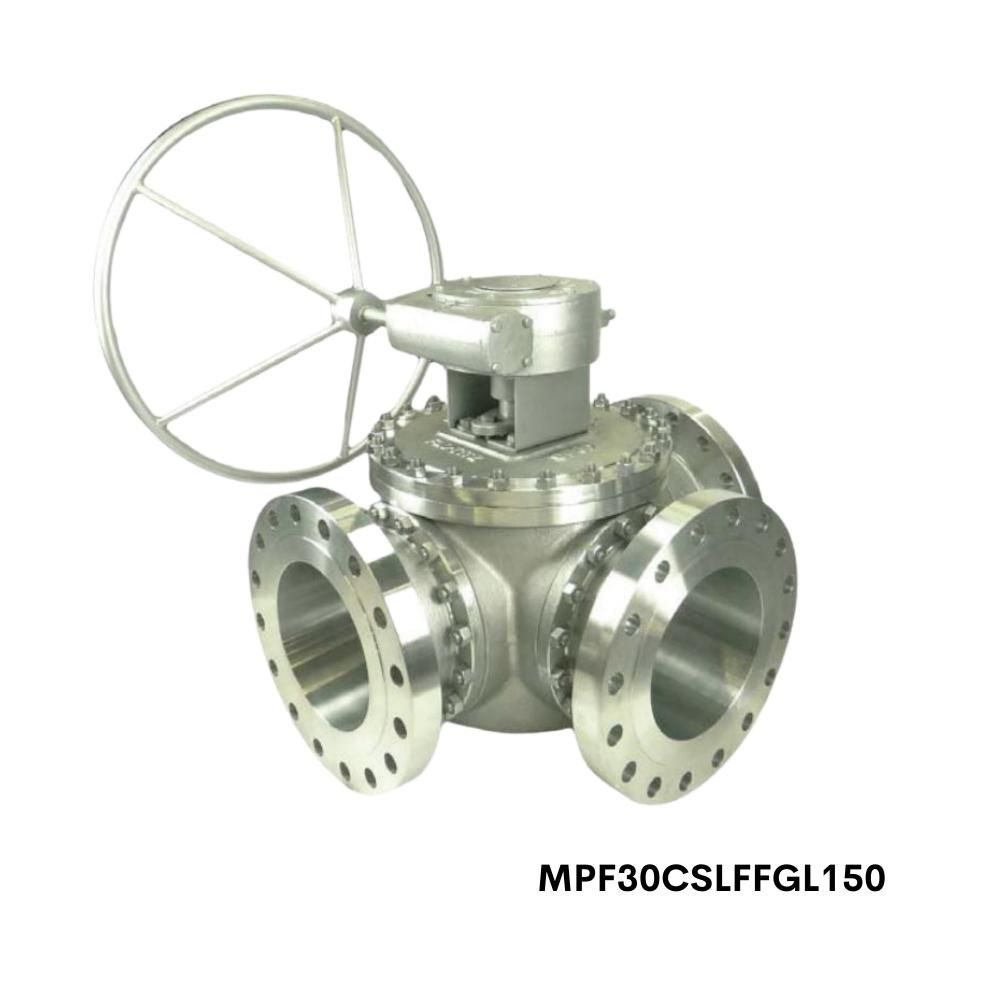

MPF30-CS-L-FFG-L-150 Flo-Tite 6" ASTM A216 WCB Multi Port Ball Valves, Trans-Flo Series Multi-Port 3 & 4 Way MPF 15/30/60

The Flo-Tite Flanged Series are designed as 3 seats designed construction, which maintains proper ball position. This line of valves utilizes the Trunnion Support Design. This precise ball positioning is often not possible in more common multi-piece stem ball designs. This allows all sides to be used as an inlet or block port without leakage. Sizes 3/4" thru 12" offer a three-seat design as standard. A fourth seat can be added to aid in balancing the ball for optional control during modulation. Our valves are bi-directional, meaning upstream or downstream could be at either end of the valve.

Features:

• One Piece Ball/Stem Trunnion - Supported Type
• Three Seat Design Maintains Proper Ball Position, four Seat Design Optional
• Actuator Mounting Flange ISO-5211
• Anti-Static Grounding Device
• Open And Closed Locking Device for Positional Safety Lockout to 6", 8", 10", and 12" Optional
• Flow Plans for Both T & L Ports can be field rearranged to meet many other Flow Options.
• Both T & L Valves can be offered with an off position.
• Body Cavity fillers for sizes 3/4" - 6"
• Full Port 1/2" - 12", Standard Bore 6" - 12"
• Handle Operated 1/2"-4", 6" & Larger, Gear Operator Standard
