Supports 4" pipe up to 14" above roof.
List Price
$234.60
List Price
$234.60
As low as
$54.14
Details

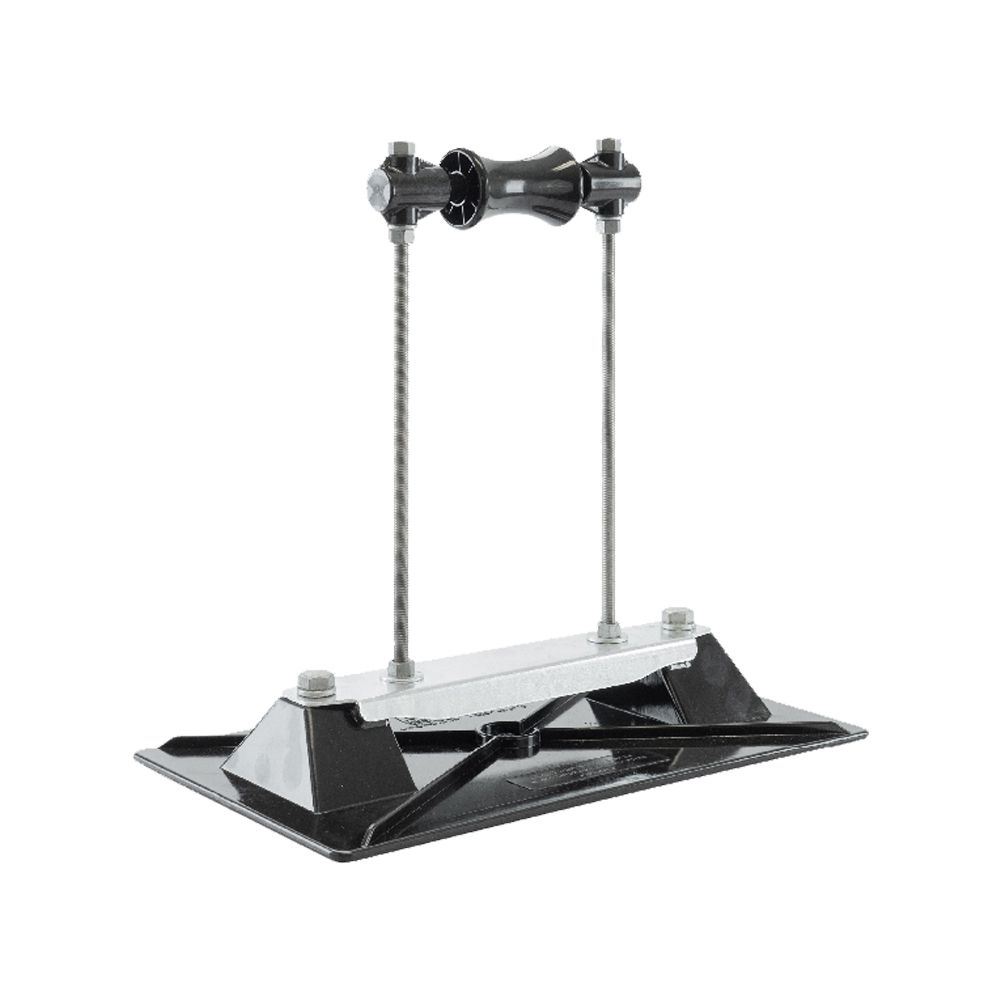

A "roller-bearing" pipe support used to support roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a self-lubricating polycarbonate resin roller rod and roller. The pipe support base is made of polycarbonate resin, the supporting all-thread and all metal parts are made of stainless steel. Pipestand will accommodate up to 4.5" (outside diameter) pipes.
More Information
| Weight | 3.500000 |
|---|---|
| Condition | New |
| Brand | MIRO Industries |
| Base Material | Polycarbonate |
| Size | The deck base is 9" by 15.25" and the maximum cradle width is 4". |
| Maximum Pipe Size | 4.5" outside diameter. |
| Maximum Pipe Clearance | Minimum clearance height of 4.5" and maximum clearance height of 13.625". |
| Maximum Load Weight | Maximum load weight may not exceed 335 lbs. per pipestand. |
| Spacing | Manufacturer's recommended spacing is not to exceed 10 foot centers depending upon the load. |
