Supports 3" pipe up to 8" above roof.
List Price
$337.32
List Price
$337.32
As low as
$35.77
Details

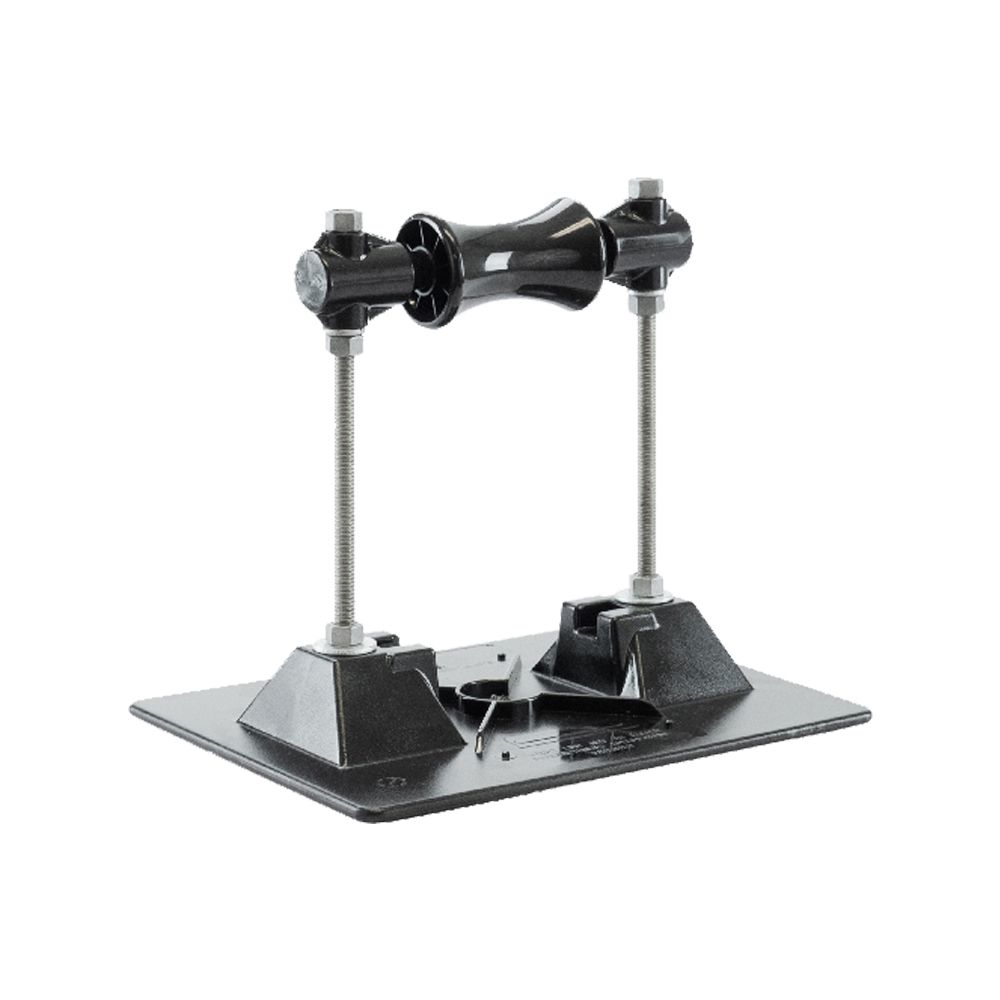

A "roller-bearing" pipe support used to support roof-mounted gas pipes, electrical conduit, solar piping and other mechanical piping. Unique design absorbs thermal expansion and contraction of pipes thus preventing damage to the roof membrane. Pipes rest on a self-lubricating polycarbonate resin roller rod and roller. The pipe support base is made of polycarbonate resin, the supporting all-thread and all metal parts are made of stainless steel. Pipestand will accommodate up to 3-3/4" (outside diameter) pipes.
More Information
| Weight | 2.000000 |
|---|---|
| Condition | New |
| Brand | MIRO Industries |
| Base Material | Polycarbonate |
| Size | The deck base is 7.5" by 10" and the maximum cradle width is 4". |
| Maximum Pipe Size | 3.75" outside diameter |
| Maximum Pipe Clearance | Minimum clearance height of 3.875" and maximum clearance height of 8". |
| Maximum Load Weight | Maximum load weight may not exceed 172 lbs. per pipestand. |
| Spacing | Manufacturer's recommended spacing is not to exceed 10 foot centers depending upon the load. |
