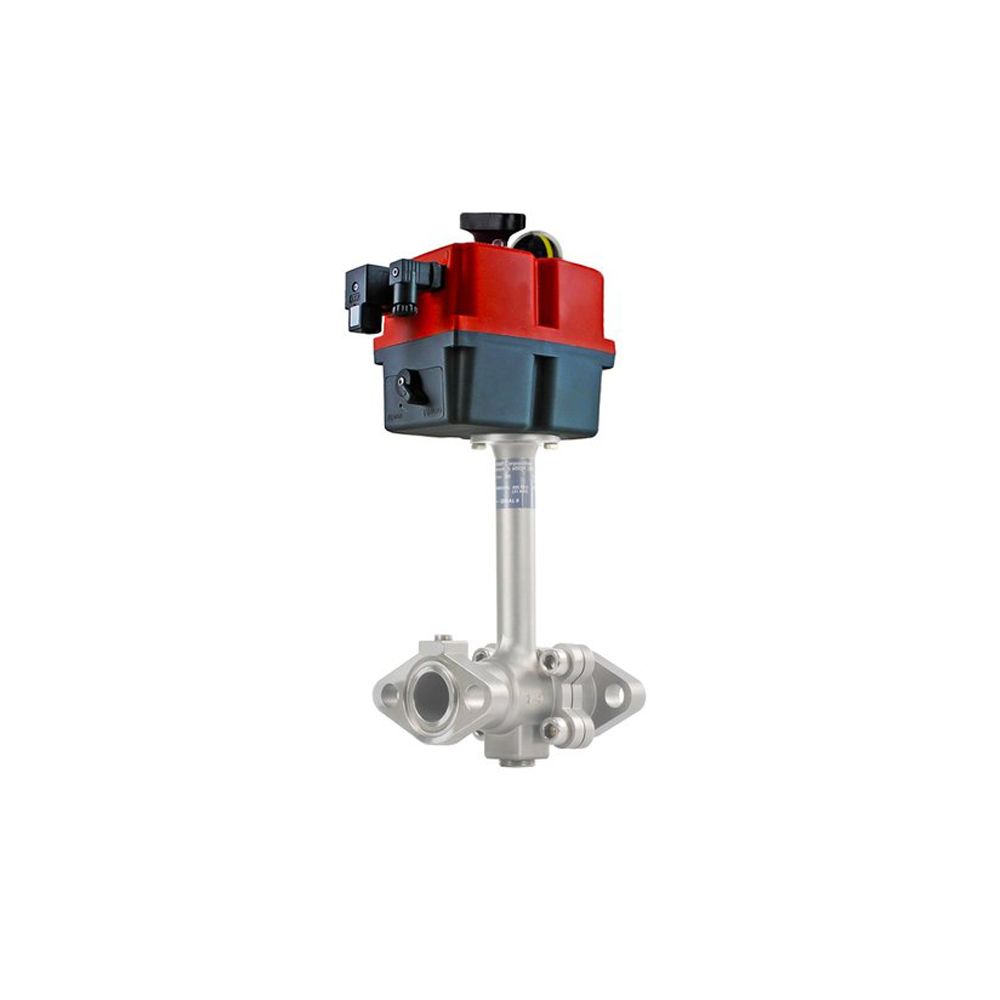

MCBV-150-VP-FL Westermeyer 1-1/2 Motorized Ball Valve, V-Port, Flanged

The HANTEMP Motorized Ball ValveMCBVincludes an electronic actuator for modulation or open/close control of the valve. All electronic actuators include integrated manual override Handle/Indicator for opening/closing. This patented design of ball valves features stainless steel construction, very low pressure drop, gradual opening and closing, integral reverse-flow check, standard F05 actuator mount, and an extended valve neck for simple insulation. Also available as the manual BV ball valve with the same valve bodies and internals, equipped with a manual proportional handle.FEATURESPrecise modulation and very low pressure dropExtended valve neck for total insulationCharacterized V-Ports available for modulationConstructed of stainless steel800 psig (55 bar) SWP; -70°F to +240°F (-57°C to +115°C) safe operating temperatureISO F05 Actuator Mounting StandardAvailable for flanged or weld inline installationLock-out/tag-out optionConforms to IIAR Valve Standard"Ball valves are increasingly popular for industrial refrigeration due to smooth operation and minimal pressure drop."
