SKU
IRP 1002
Brand:

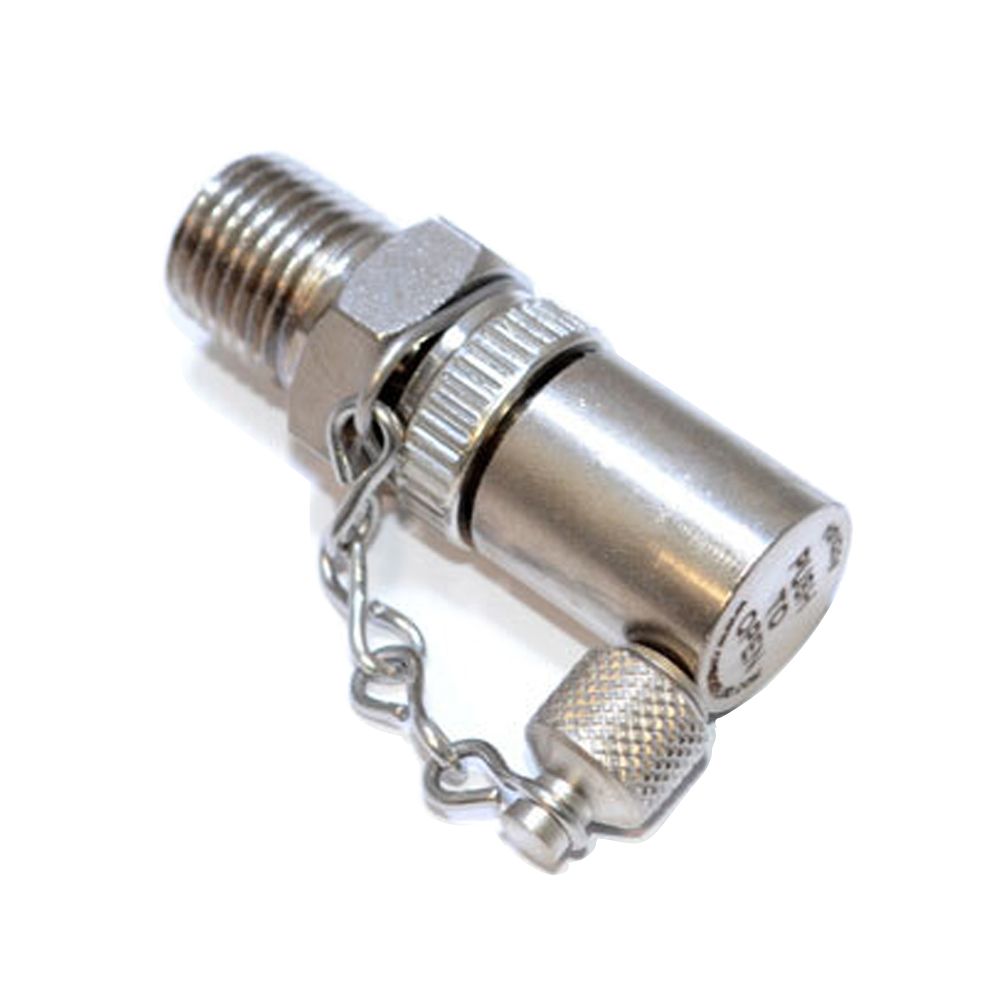

1/4" Oil Sampling Valve with Push Button

Push-button oil sampling valve with 1/4" NPT male connection and locknut for foam control. Neoprene sealing. Used for refrigeration and ammonia compressors.

List Price $70.00 List Price $70.00 Web Price $60.51
Estimate shipping for this product
Details

Push-button oil sampling valve with 1/4" MPT connection. Stainless steel with e-nickel plating. Used for refrigeration and ammonia compressors.

This oil sampling valve is specifically designed for ammonia compressors, with sealing, material and plating that are compatible with ammonia. It includes a locknut feature which is recommended to reduce foaming while sampling (a common issue with ammonia).

Features

  • Easy push to open: Release to close action.
  • Cost-effective: No probes needed, reduces the risk of cross-contamination
  • Locknut: Foam can be a common issue with ammonia compressors. The key to reducing foam is to use the locknut feature on the valve. Simply open locknut about halfway and pulse push button to reduce foam
  • Unique 360° rotating spout offers convenient sampling and installation without swivel fittings
  • Reliable: Dual sealed design independently tested at 7800 psi for one million cycles
  • Patented elastomeric valve seals vacuum-tight at 27 in Hg
  • Corrosion-resistant stainless steel chain and clip with no exposed springs
  • Rugged spout design with easy to grip knurled cap
  • E-Nickel plating and steel materials for compatibility with ammonia

Specifications

  • Max. Working Pressure: 6000 psi (41.4 MPa)
  • Max. Sampling Pressure: 750 psi (5.17 MPa)
  • Body Material: Carbon Steel
  • Electroplating: E-Nickel
  • Sealing Method: Elastometric
  • O-Ring Materials: Neoprene
  • NPTF: 18
  • Temperature Range: -65°F to 285°F (-55°C to +140°C) - Neoprene Sealing Range
  • Overall Size: 2” x 1.5” x 0.5” (51mm x 38mm x 13mm)
More Information
More Information
Weight 1.000000
Condition New
Manufacturer IRP
Body Material Carbon Steel
Size 2” x 1.5” x 0.5” (51mm x 38mm x 13mm)
Connection Size 1/4"
Maximum Working Pressure (PSIG) 6000 psi (41.4 MPa)
Width 1
Height 2
Length 1
Depth 2.0000
