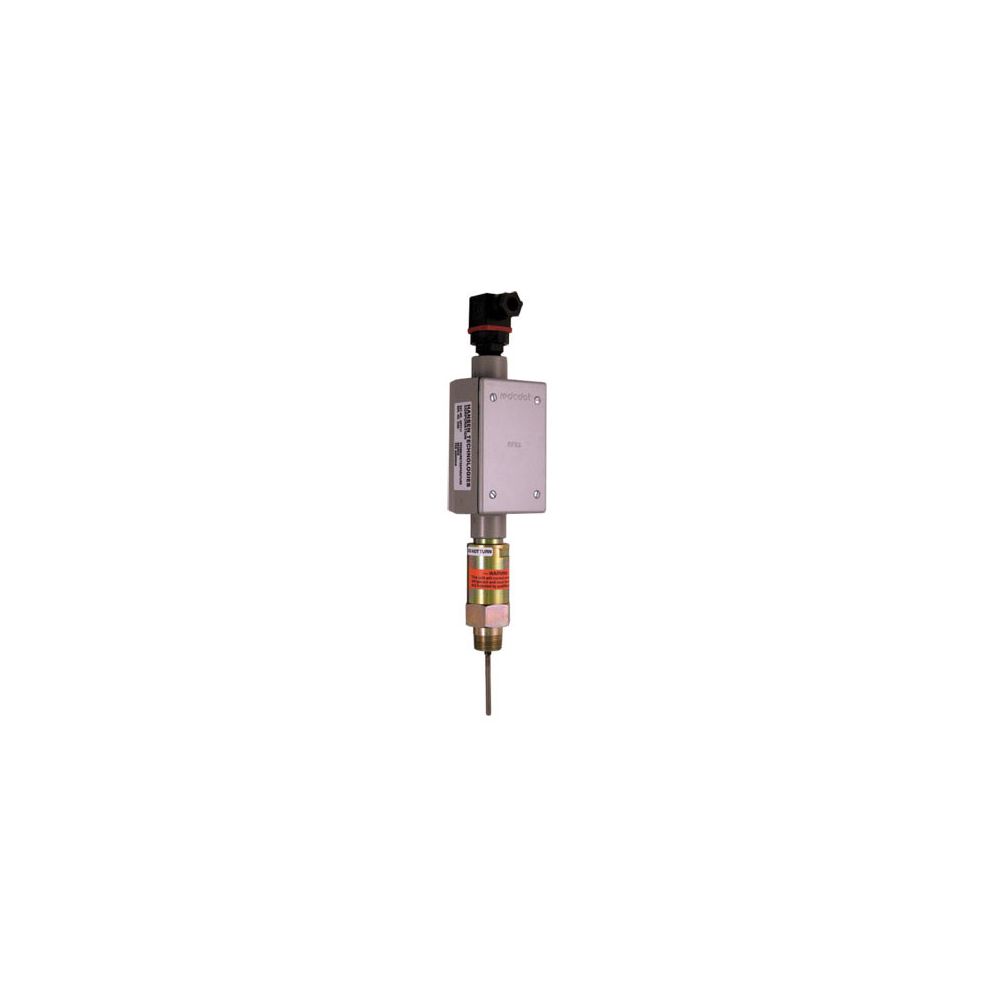

The Hansen Pressure/Temperature Transducer is designed to measure both temperature and pressure within a single connection. Electronics calculate superheat or sub-cooling for the specified refrigerant with a 4-2 mA Output.
List Price
$1,737.00
List Price
$1,737.00
Web Price
$1,529.63
Details
The Hansen Pressure/Temperature Transducer is designed to measure both temperature and pressure within a single connection. Electronics calculate superheat or sub-cooling for the specified refrigerant with a 4-2 mA Output. Base model is suitable for ammonia. Also suitable for halocarbons, propane, and carbon dioxide with the appropriate refrigerant key. Standard model HPT is suitable for -35Â °F to +15Â °F (-37Â °C to +65Â °C). Low temperature model HPTL is suitable for -6Â °F to +15Â °F (-51Â °C to +65Â °C). Low temperature models have a longer insertion length.
More Information
| Weight | 10.000000 |
|---|---|
| Condition | New |
| Brand | Hansen |
| Enclosure | NEMA 4, watertight (IP65) |
| Ambient Temperature | -20°F to +125°F (-30°C to +50°C) |
| Body | steel, zinc plated with yellow chromate |
| Maximum Load Resistance | 1200 Ohms at 24 VDC |
| Safe Working Pressure | 400 psig (28 bar g) |
