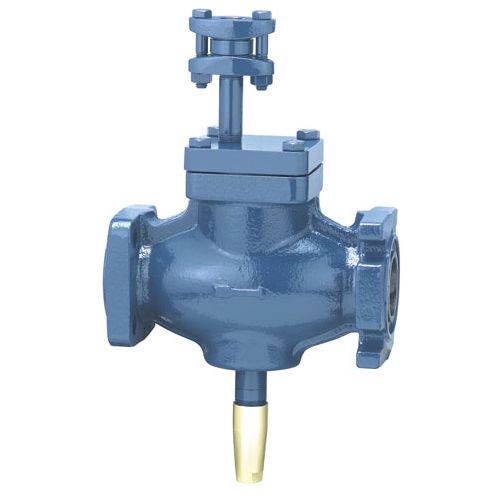

Hansen HCK2/7, 3 (80MM)Gas Powered Suction Stop Valve w/1/2 Socket Weld Disc STR

List Price $2,728.00 List Price $2,728.00 Web Price $1,678.77

Qty:

Save for Later

Ask us a question about this product

Details

These heavy-duty, flanged, gas-powered suction stop valves are designed to control the flow of refrigerant in large industrial and commercial applications. They remain normally open via a spring and require no pressure drop to operate. Valves are normally installed on their side for better conveyance of liquid overfeed or oil and to avoid trapping. A single pilot solenoid valve is required to control a higher pressure refrigerant gas which closes these valves during defrosting.

More Information

More Information
Weight	77.000000
Condition	New
Brand	Hansen
Port Size	3"
Body	Ductile iron, ASTM A536
Piston	Ductile iron, ASTM A536
Seal Cap	Steel, zinc chromate plated
Stem	Plated steel
Top Cover	Steel, ASTM A36
Safe Working Pressure	400 psig (27 bar), 600 psig (40 bar) for CO2
Spring	Stainless steel
Operating Temperature	-60°F to +240°F (-50° to+115°C)
Width	19
Height	13
Length	13

Resources

HCK2-1 (Size: 480.8 KB)
