SKU
AWE075C
Brand:
Hansen

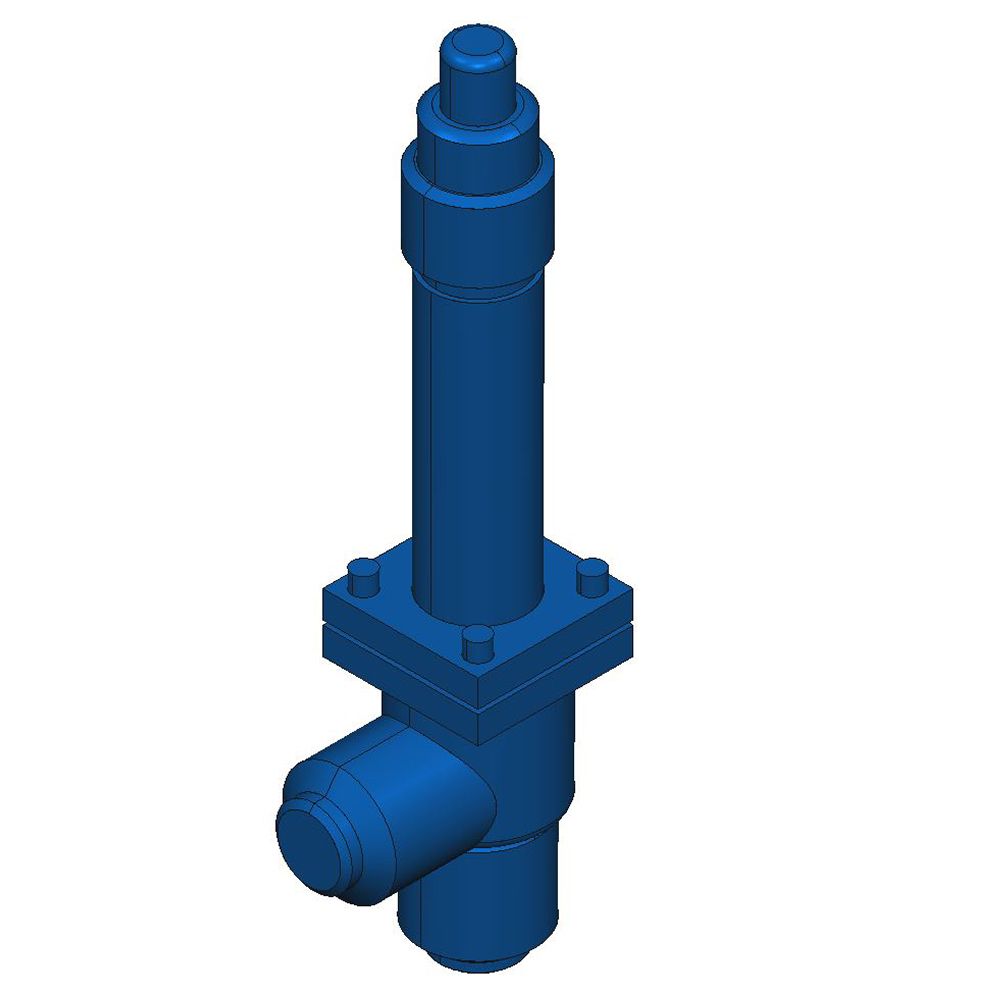

Hansen AWE075C, 3/4" Shut-Off Valve, Angle, Butt Weld, SC, Extended Neck, 4-BLT

Bolted bonnet, large bonnet bolts for exceptional strength, non-leak, stainless steel stems, forged steel or low temperature cast steel bodies.
List Price $502.00 List Price $502.00 Web Price $334.67
Save for Later
Ask us a question about this product
Details
Bolted bonnet, large bonnet bolts for exceptional strength, non-leak, stainless steel stems, forged steel or low temperature cast steel bodies. Extended Neck Shut-off Valves are bolted bonnet design with 316 stainless steel stem and 316 stainless steel packing nut. Extended Neck valves meet or exceed the insulation thickness recommended in IIAR Piping Handbook.
More Information
More Information
Weight 5.000000
Brand Hansen
Condition New
Port Size 3/4"
Body Material Forged Steel
Bonnet Style Screwed Bonnet
End Connection Butt Weld
Valve Body Type Angle Extended Neck
Bonnet Type Screwed Bonnet
Connection Style Butt Weld
Handle Style Seal Cap
Safe Working Pressure 400 psig (28 bar g) standard, 600 psig (41 bar g) upon request
Refrigerant Gas R717
Resources
Attachment
BWSOV (Size: 445.8 KB)
