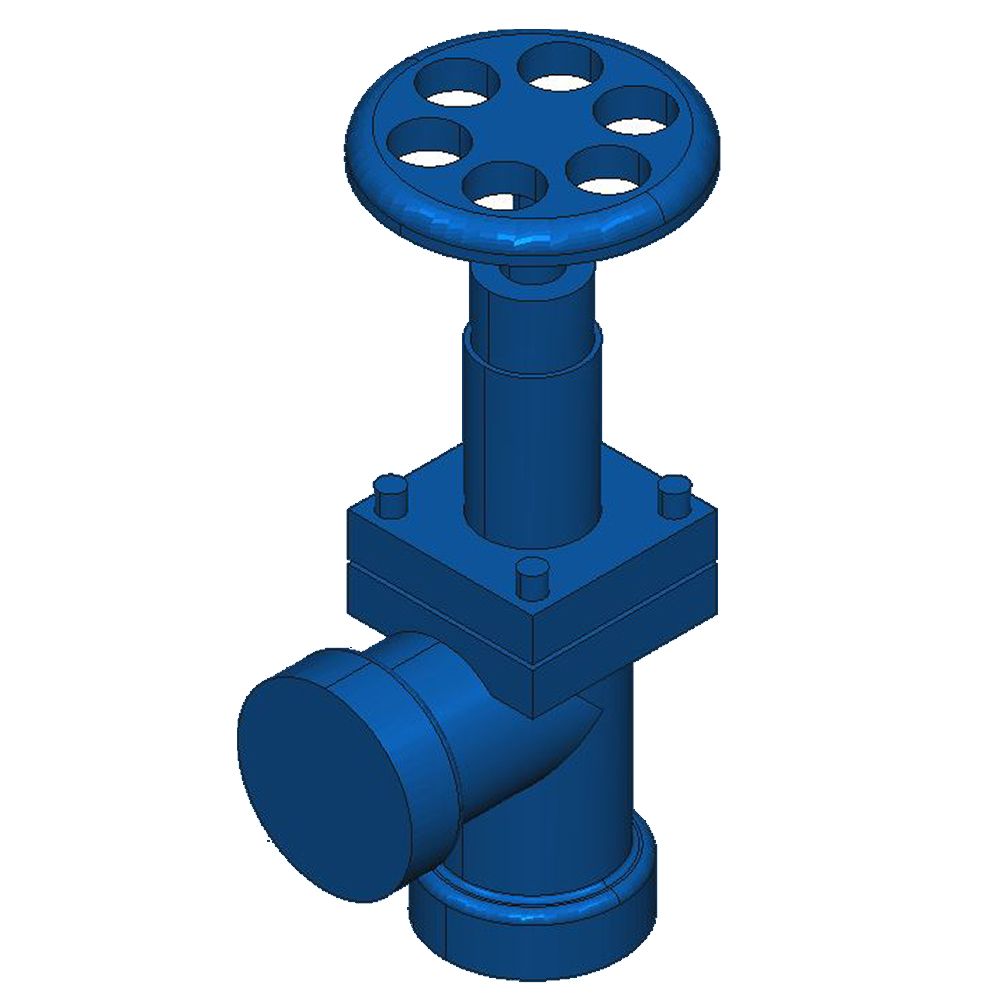

Hansen ATB100H, 1 Shut-off Valve, Angle, Bolted Bonnet, Threaded, Handwheel

The advanced design and materials of Hansen refrigerant shut-off and hand expansion valves make them far superior to commonly available products.

List Price $356.00 List Price $356.00 Web Price $237.33

Qty:

Save for Later

Ask us a question about this product

Details

The advanced design and materials of Hansen refrigerant shut-off and hand expansion valves make them far superior to commonly available products. The extended neck of the bolted bonnet design greatly simplifies insulation, and allows compliance with industry guidelines for insulation thickness. In addition, non-leak seats, stems, and bonnets virtually eliminate the possibility for refrigerant leakage. Anyone who has experienced the failure of a shut-off valve at a crucial time will take care to insist upon these highly reliable valves.

More Information

More Information
Weight	6.000000
Brand	Hansen
Condition	New
Port Size	1"
Body	Forged steel, ASTM A105
Bonnet Style	Bolted Bonnet
Valve Body Type	Angle
Bonnet	Cast ductile iron, ASTM A536
Bonnet Seal	Non-asbestos graphite composite
Connection Style	Threaded
Disc Holder	Plated steel
Handle Style	Handwheel
Handwheel	Zinc plated alloy
Ball Bearings	Stainless steel
Packing Nut	Zinc plated steel
Seal Cap	Glass-filled polymer, Neoprene O-ring seal, safety vented
Seat Disc	Retained PTFE Teflon
Stem	Polished stainless steel
Stem Packing	Graphite composite plus neoprene O-ring in series
Operating Temperature	Standard, -60°F to 240°F (-51°C to 115°C), temperatures below -60°F (-51°C) to -76°F (-60°C) at coincident pressures (Bolted bonnet only) Optional, -20°F to 300°F (-29°C to 149°C)
Safe Working Pressure	400 psig (28 bar g) standard, 600 psig (41 bar g) upon request

Resources

ATB-1 (Size: 358.5 KB)
